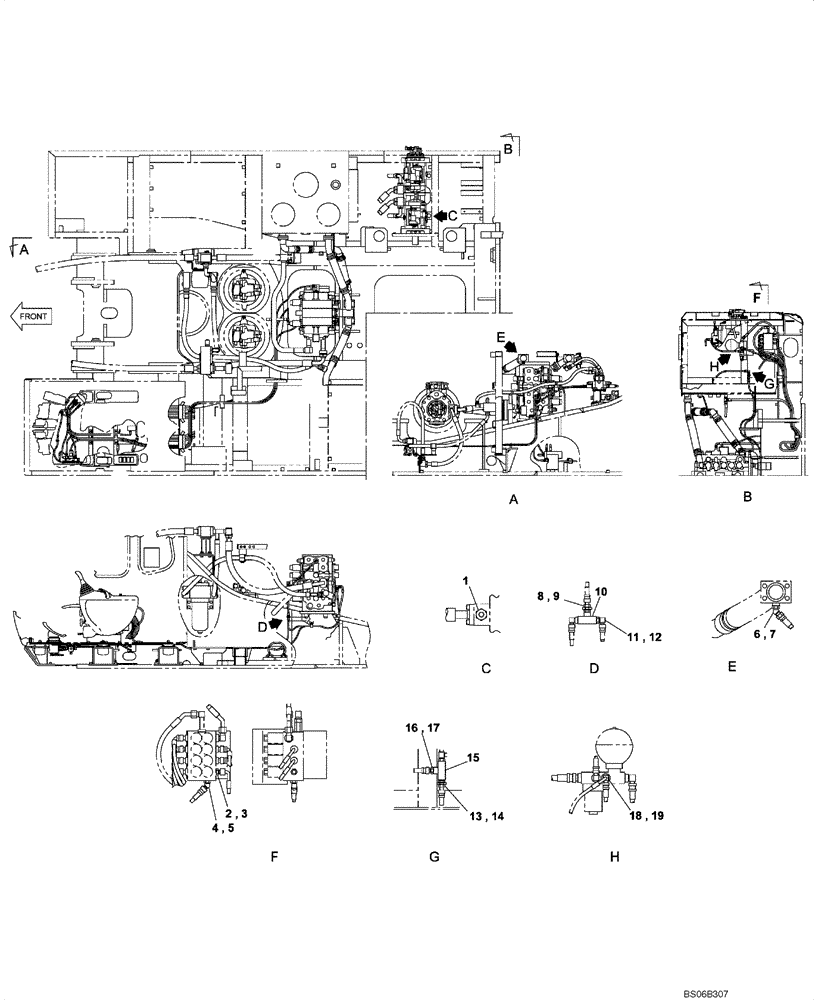

Запчасти Case CX700 (08-096-00[01]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (WITH SELF-DETACHING COUNTERWEIGHT SYSTEM) (08) - HYDRAULICS

1

168733A1

ADAPTER

G 3/4-G 3/8

1шт.

2

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 3

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

150933A1

ELBOW

G 1/4; Incl. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

157584A1

ELBOW

G 3/8; Incl. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

158183A1

ELEC CONNECTOR,Male

Incl. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

KHJ17090

VALVE PRESSURE RELIE

G 1/4; Replaces 158186A1

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

158183A1

ELEC CONNECTOR,Male

G 1/4; Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

158186A1

VALVE PRESSURE RELIE

G 1/4

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

159497A1

TEE

Incl. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
