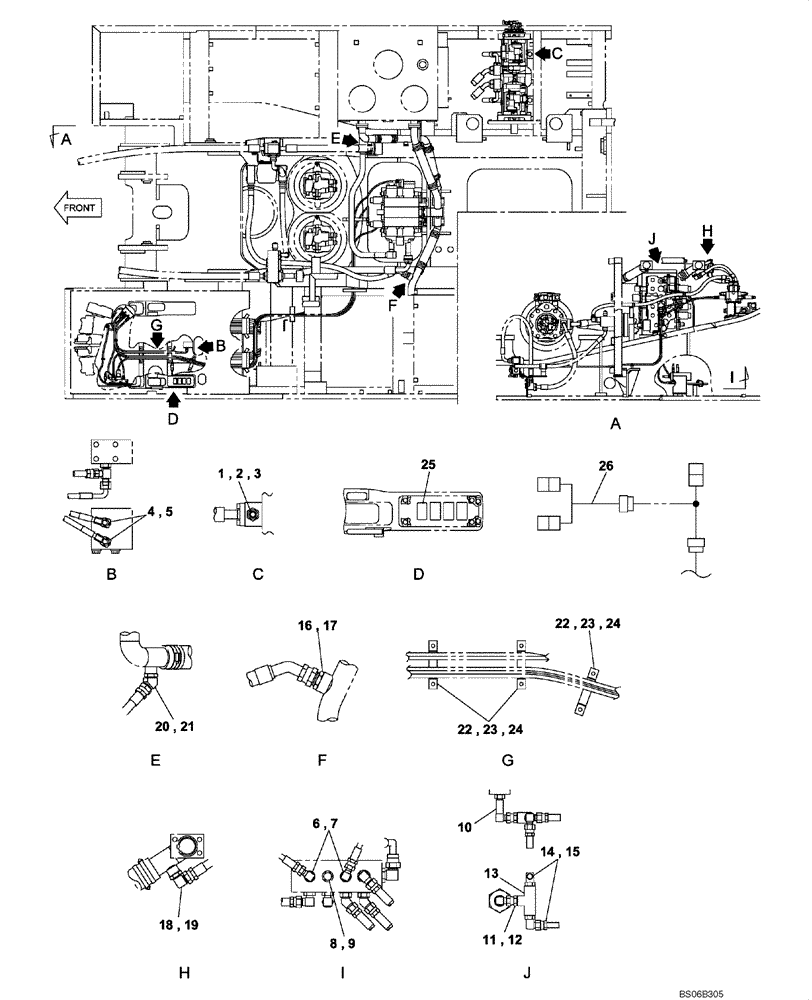

Запчасти Case CX700 (08-094-00[01]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (SMALL FLOW - PICK HAMMER) (08) - HYDRAULICS

1

KHJ1348

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

159497A1

TEE

Incl. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

G 1/4; Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

159002A1

PLUG

G 1/4; Incl. 9

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

KHJ1178

ELBOW

1шт.

11

162654A1

HYD CONNECTOR

Incl. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

KHJ17090

VALVE PRESSURE RELIE

G 1/4; Replaces 158186A1

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

G 1/4; Incl. 15

2шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

159047A1

ADAPTER

Incl. 17

1шт.

17

154559A1

O-RING

1шт.

18

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

G 3/4; Incl. 19

1шт.

19

154503A1

O-RING

1шт.

20

157586A1

ELBOW

G 3/4; Incl. 21

1шт.

21

154503A1

O-RING

1шт.

22

KHJ1951

CLAMP

3шт.

23

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

24

153081A1

WASHER

W M8

6шт.

25

KHR2913

CAP

1шт.

26

KHR3353

HARNESS

1шт.
