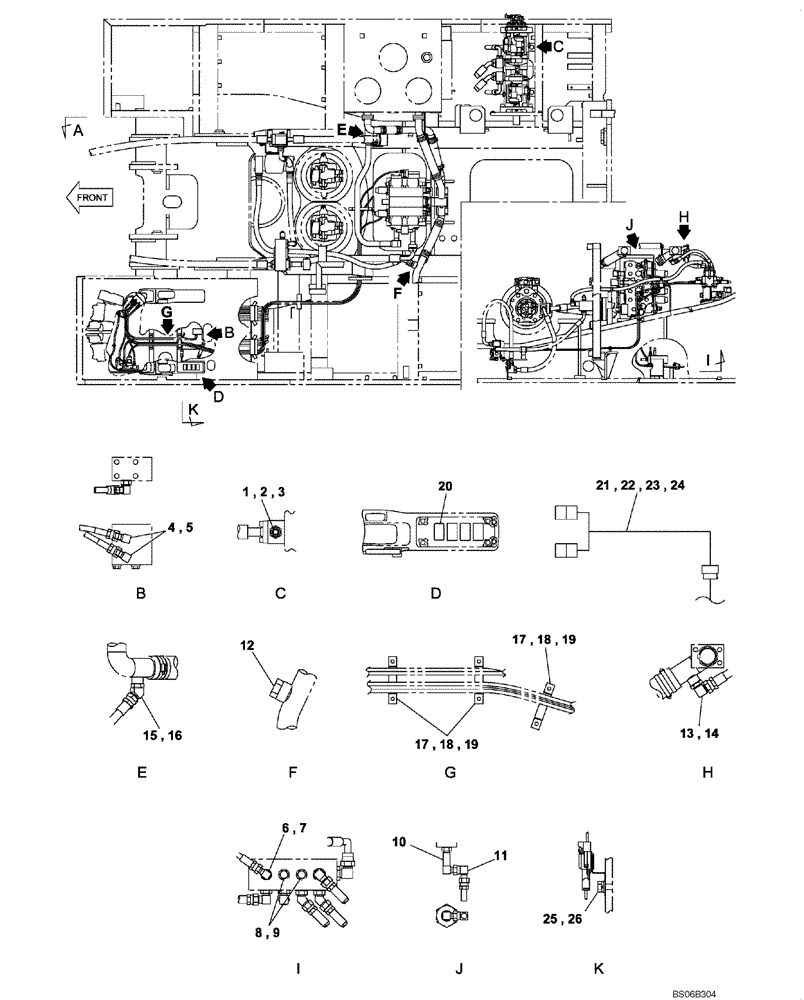

Запчасти Case CX700 (08-093-00[01]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (SMALL FLOW) (08) - HYDRAULICS

1

KHJ1348

ADAPTER

Incl. 2

1шт.

2

154503A1

O-RING

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

4

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

G 1/4; Incl. 5

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

G 1/4; Incl. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

159002A1

PLUG

G 1/4; Incl. 9

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

KHJ1178

ELBOW

1шт.

11

163814A1

ELBOW

1шт.

12

162335A1

PLUG

G 1/2

1шт.

13

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

G 3/4; Incl. 14

1шт.

14

154503A1

O-RING

1шт.

15

157586A1

ELBOW

G 3/4; Incl. 16

1шт.

16

154503A1

O-RING

1шт.

17

KHJ1951

CLAMP

3шт.

18

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

6шт.

19

153081A1

WASHER

W M8

6шт.

20

KHR2913

CAP

1шт.

21

KHR3352

HARNESS

1шт.

22

150860A1

COLLAR

3шт.

23

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 12

3шт.

24

150496A1

MOUNTING CLIP

250 mm

3шт.

25

165405A1

CLIP

1шт.

26

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 x 12

1шт.
