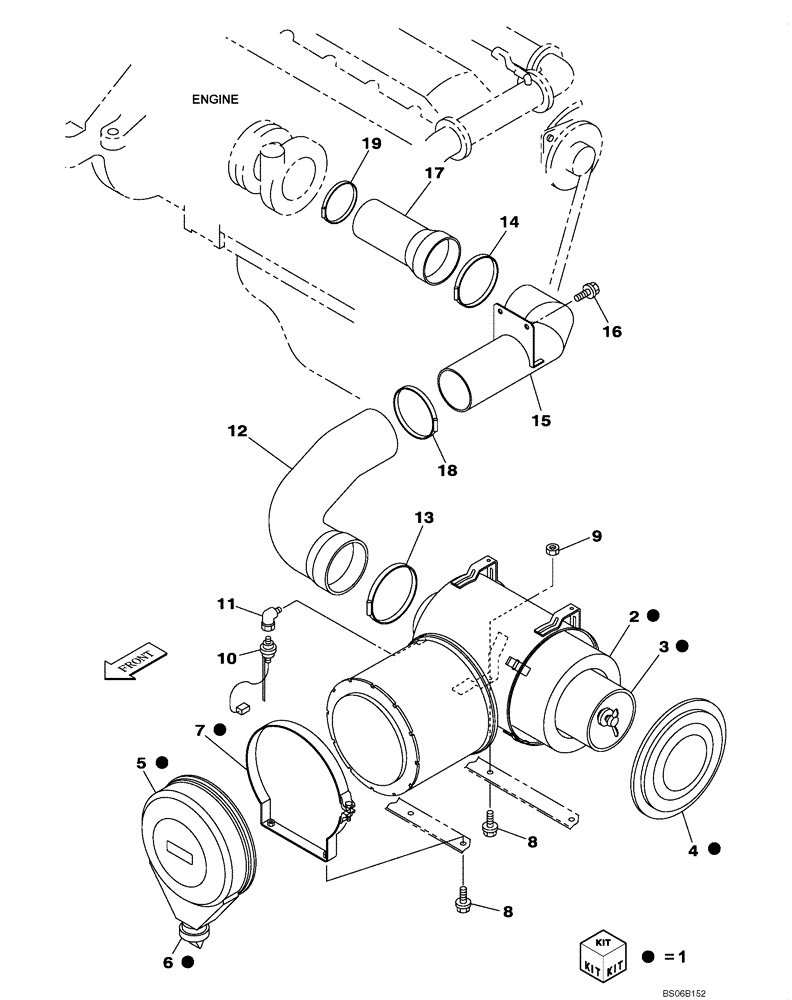

Запчасти Case CX700 (02-002-00[01]) - AIR FILTRATION (02) - ENGINE

1

KWH0003

FILTER ASSY

Incl. 2 - 7

1шт.

2

KWH0029

AIR CLEANER

Primary

1шт.

3

KWH0050

AIR FILTER

Secondary

1шт.

4

KWH0051

FILTER COVER

1шт.

5

KWH0052

FILTER COVER

1шт.

6

KWH0053

VALVE SECTION

1шт.

7

KWH0034

BAND

1шт.

8

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

10

KHH10330

SENSOR

1шт.

11

165818A1

ELBOW

1шт.

12

KWH0015

AIR FLEXIBLE

1шт.

13

KSJ2139

FIXING STRIP

1шт.

14

158840A1

BAND,133mm - 158mm

1шт.

15

KWH0035

AIR CHANNEL

1шт.

16

166352A1

BOLT

M12 x 30

2шт.

17

KWH0014

AIR FLEXIBLE

1шт.

18

158840A1

BAND,133mm - 158mm

1шт.

19

150855A1

HOSE CLAMP,127mm - 146mm

1шт.
