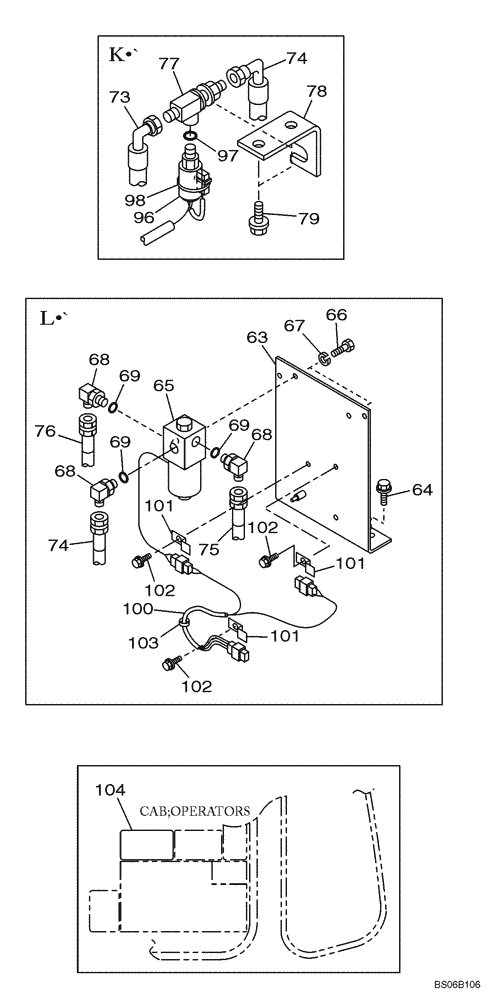

Запчасти Case CX700 (08-043-01[01]) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

63

KWJ10630

SUPPORT

1шт.

64

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

65

162538A1

VALVE

Solenioid; See Figure 08-252-00 01

1шт.

66

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

67

183-106VR

SPRING WASHER

2шт.

68

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 69

3шт.

69

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

KHJ1931

HOSE

1шт.

74

159009A1

HOSE ASSY.

1шт.

75

KHJ2543

PLASTIC-RUBBER TUBE

1шт.

76

KHJ2543

PLASTIC-RUBBER TUBE

1шт.

77

KHJ11470

ADAPTER

1шт.

78

KHJ2127

BRACKET

1шт.

79

166345A1

BOLT

2шт.

96

KHR10800

PRESSURE SWITCH

Incl. 97

1шт.

97

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

98

150067A1

MOUNTING CLIP

1шт.

100

KHR3870

WIRE HARNESS

1шт.

101

158962A1

CLIP

3шт.

102

167518A1

BOLT

3шт.

103

KHR2787

CLAMP

1шт.

104

KHP1755

DECAL

Operation

1шт.
