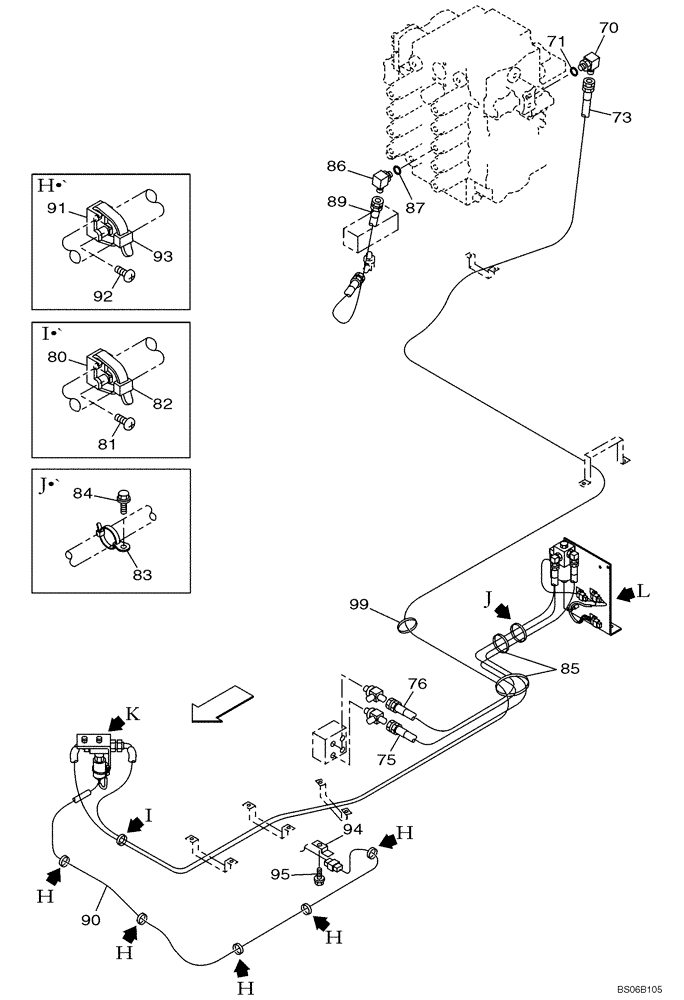

Запчасти Case CX700 (08-043-00[01]) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

70

156554A1

ELBOW

Incl. 71

2шт.

71

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

KHJ1931

HOSE

1шт.

75

KHJ2543

PLASTIC-RUBBER TUBE

1шт.

76

KHJ2543

PLASTIC-RUBBER TUBE

1шт.

80

150860A1

COLLAR

1шт.

81

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

82

150496A1

MOUNTING CLIP

250 mm

1шт.

83

KHR2584

CLAMP

1шт.

84

KHJ1215

BOLT,Spcl

1шт.

85

150071A1

MOUNTING CLIP

380 mm

1шт.

86

156554A1

ELBOW

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

151877A1

HOSE,63.00 mm ID x 1200.00 mm

1шт.

90

KHR3350

HARNESS

1шт.

91

150860A1

COLLAR

5шт.

92

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

93

150496A1

MOUNTING CLIP

250 mm

5шт.

94

165405A1

CLIP

1шт.

95

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M6 X 12

1шт.

99

150067A1

MOUNTING CLIP

150 mm

1шт.
