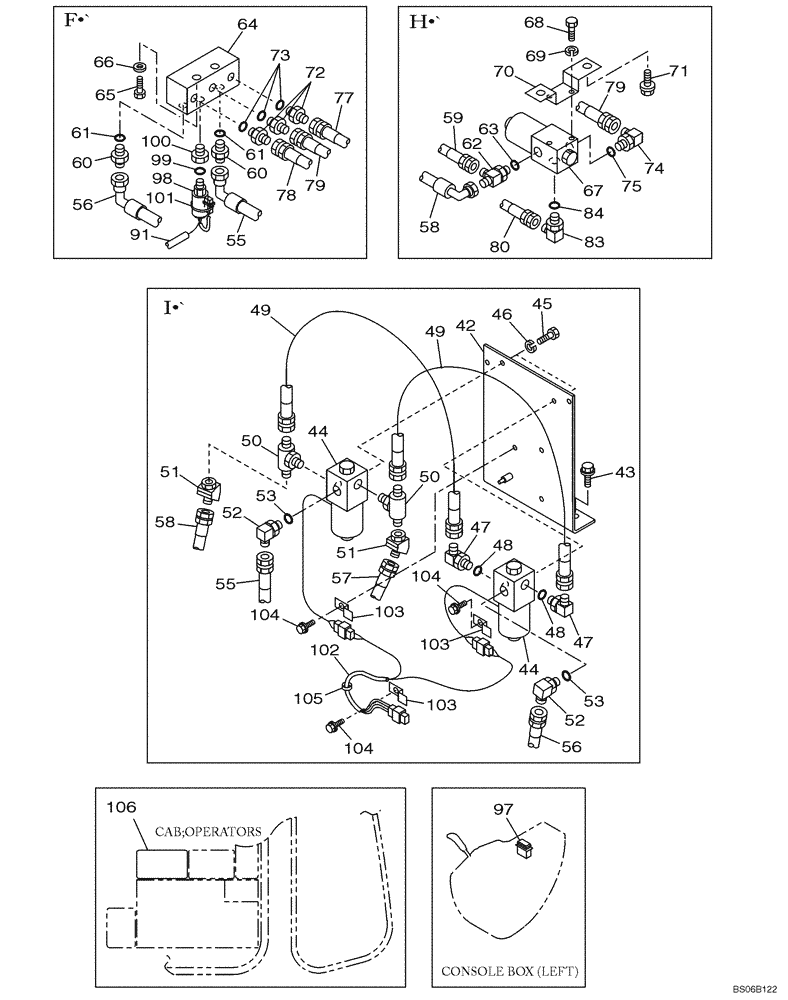

Запчасти Case CX700 (08-041-00[01]) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

42

KWJ10630

SUPPORT

1шт.

43

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

44

162538A1

VALVE

See Figure 08-252-00

2шт.

45

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

4шт.

46

183-106VR

SPRING WASHER

4шт.

47

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 48

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

168780A1

HYDRAULIC HOSE,6.30 mm ID x 350.00 mm

2шт.

50

167321A1

TEE

2шт.

51

KHJ1222

ELBOW

2шт.

53

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 53

2шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

159020A1

HOSE

1шт.

56

167352A1

HOSE,2500.00 mm

1шт.

57

KAA0733

HYDRAULIC HOSE

1шт.

58

KAJ3243

HYDRAULIC HOSE

1шт.

59

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

60

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 61

2шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

159497A1

TEE

Incl. 63

1шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

64

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

65

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

66

153081A1

WASHER

2шт.

67

162538A1

VALVE

See Figure 08-252-00

1шт.

68

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

69

183-106VR

SPRING WASHER

2шт.

70

KRJ5751

BRACKET

1шт.

71

166346A1

BOLT,Sems, M10

2шт.

72

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 73

3шт.

73

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

74

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 75

1шт.

75

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

KRJ3487

HOSE

1шт.

78

KHJ1248

HYDRAULIC HOSE

1шт.

79

161272A1

HOSE

1шт.

80

KRJ3487

HOSE

1шт.

83

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 84

1шт.

84

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

91

KHR3351

HARNESS

1шт.

97

KHR3129

SWITCH

1шт.

98

KHR10800

PRESSURE SWITCH

Incl. 99

1шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

KHJ11460

ADAPTER

1шт.

101

150067A1

MOUNTING CLIP

1шт.

102

KHR3870

WIRE HARNESS

1шт.

103

158962A1

CLIP

3шт.

104

167518A1

BOLT

3шт.

105

KHR2787

CLAMP

1шт.

106

KHP1755

DECAL

1шт.
