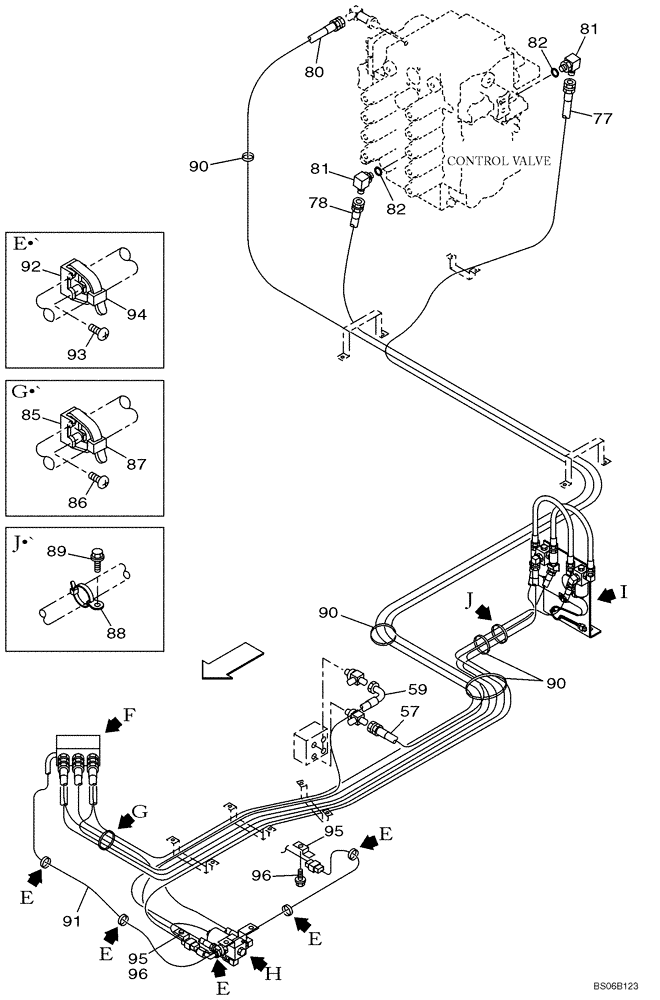

Запчасти Case CX700 (08-040-00[01]) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT (08) - HYDRAULICS

57

KAA0733

HYDRAULIC HOSE

1шт.

59

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

77

KRJ3487

HOSE

1шт.

78

KHJ1248

HYDRAULIC HOSE

1шт.

80

KRJ3487

HOSE

1шт.

81

156554A1

ELBOW

Incl. 82

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

85

150860A1

COLLAR

1шт.

86

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

87

150496A1

MOUNTING CLIP

1шт.

88

KHR2584

CLAMP

1шт.

89

KHJ1215

BOLT,Spcl

1шт.

90

150071A1

MOUNTING CLIP

4шт.

91

KHR3351

HARNESS

1шт.

92

150860A1

COLLAR

5шт.

93

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

94

150496A1

MOUNTING CLIP

5шт.

95

165405A1

CLIP

2шт.

96

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

M12 x 35

2шт.
