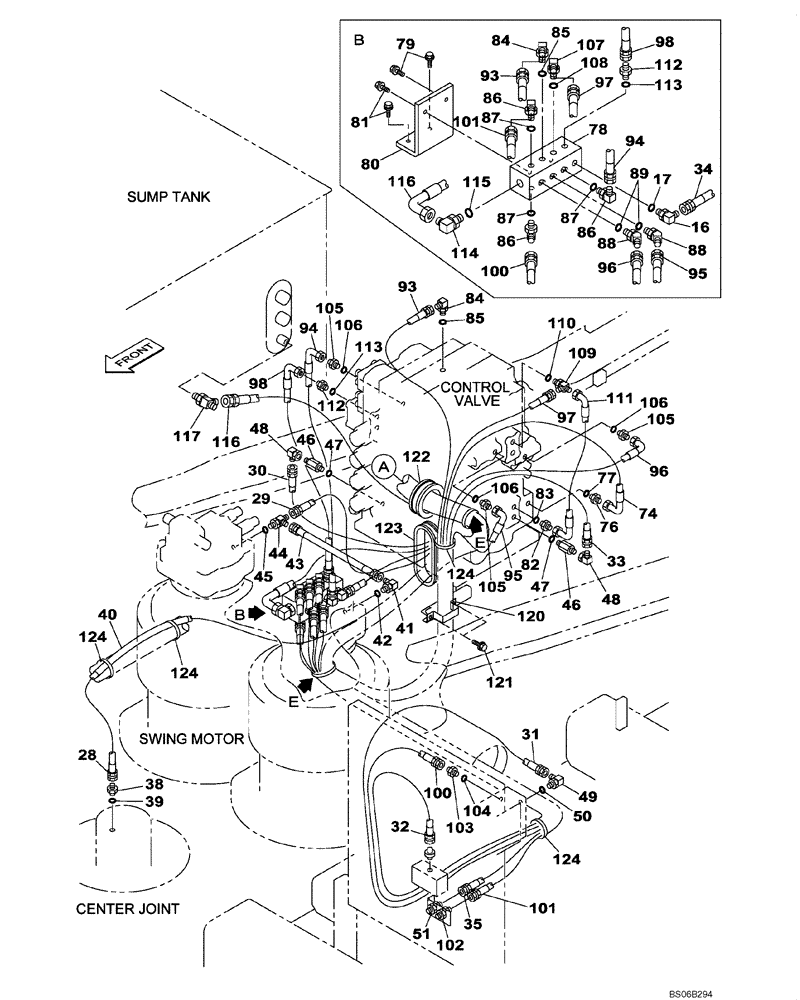

Запчасти Case CX700 (08-035-00[01]) - HYDRAULIC CIRCUIT - PILOT - LEAK-OFF RETURN (08) - HYDRAULICS

16

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 17

1шт.

17

154475A1

O-RING

1шт.

28

KRJ4750

HOSE,410.00 mm

1шт.

29

KMJ1831

HOSE

3000 mm

1шт.

30

160439A1

HOSE ASSY.

1шт.

31

KHJ10840

HYDRAULIC HOSE

5300 mm

1шт.

32

KHJ10840

HYDRAULIC HOSE

5300 mm

1шт.

33

KRJ4792

HOSE

4000 mm

1шт.

34

153089A1

HOSE

1шт.

35

KHJ11990

HYDRAULIC HOSE

1шт.

38

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 38

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

40

157564A1

FLEXIBLE SHEATH

700 mm

1шт.

41

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

150937A1

HOSE,6.30 mm ID x 490.00 mm

1шт.

44

159497A1

TEE

Incl. 45

1шт.

45

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

46

162554A1

FITTING

Incl. 47

2шт.

47

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

48

163814A1

ELBOW

2шт.

49

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 50

1шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

51

162826A1

ADAPTER

G 3/8

1шт.

74

KHJ10230

HYDRAULIC HOSE,6.35 mm ID x 4200.00 mm

1шт.

76

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 77

1шт.

77

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

KUJ0321

MANIFOLD VALVE

1шт.

79

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

80

KWV0068

HYD TUBE

1шт.

81

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

82

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 83

1шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 85

2шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

86

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 87

3шт.

87

154475A1

O-RING

1шт.

88

157584A1

ELBOW

Incl. 89

1шт.

89

154475A1

O-RING

1шт.

93

152264A1

HOSE,6.3mm ID x 2200mm L

1шт.

94

KRJ3569

HOSE

1шт.

95

KTJ1641

HOSE

1шт.

96

159228A1

HOSE ASSY.

1шт.

97

152773A1

HOSE ASSY.

1850 mm

1шт.

98

164227A1

HOSE ASSY.

1шт.

100

152774A1

HOSE ASSY.

3100 mm

1шт.

101

159076A1

HYDRAULIC HOSE

2050 mm

1шт.

102

162826A1

ADAPTER

G 3/8

1шт.

103

152747A1

ADAPTER

Incl. 104

1шт.

104

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

105

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 106

3шт.

106

154475A1

O-RING

3шт.

107

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 108

1шт.

108

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

109

159497A1

TEE

Incl. 110

1шт.

110

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

111

KHJ10220

HYDRAULIC HOSE,6.35 mm ID x 250.00 mm

1шт.

112

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 112

2шт.

113

155467A1

PLUG, DRAIN

1шт.

114

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 115

1шт.

115

154487A1

O-RING

1шт.

116

KHJ12010

HYDRAULIC HOSE,12.70 mm ID x 2000.00 mm

1шт.

117

KHJ1529

FITTING

1шт.

120

159025A1

CLAMP

1шт.

121

166350A1

BOLT

M8 x 20

2шт.

122

KHR4331

GROMMET

1шт.

123

159398A1

RUBBER BLOCK

1шт.

124

150071A1

MOUNTING CLIP

380 mm

1шт.
