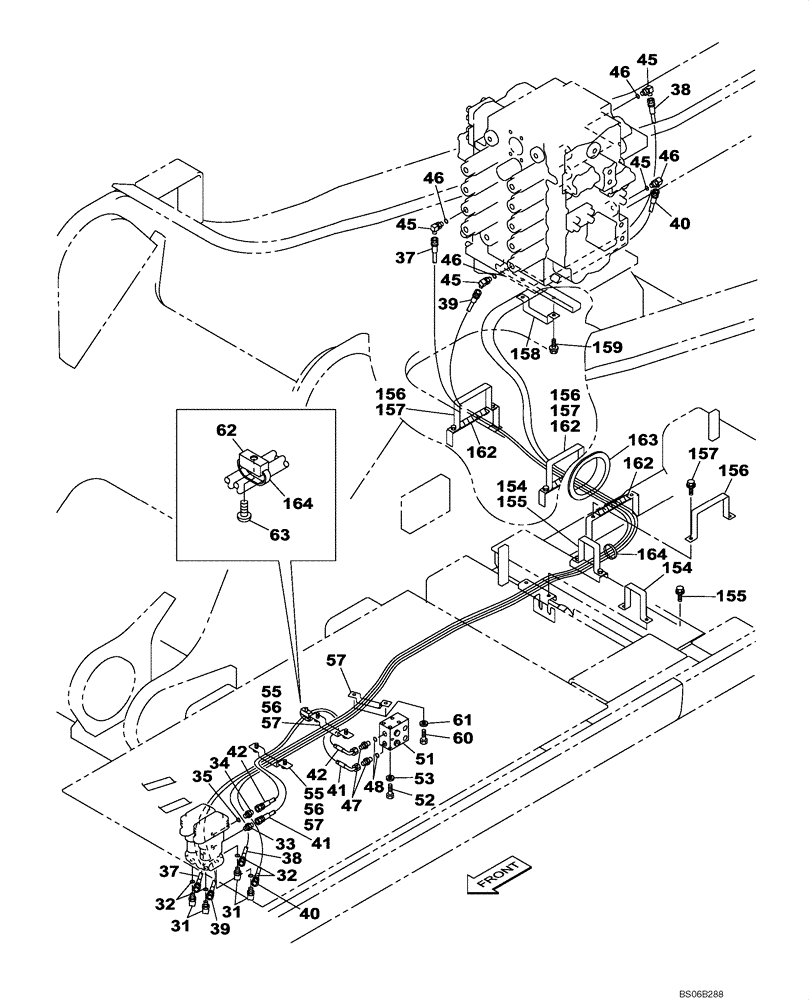

Запчасти Case CX700 (08-027-00[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT (WITHOUT VALVE, PRESSURE RELIEF) (08) - HYDRAULICS

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 32

4шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

161841A1

HYD CONNECTOR

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

KHJ10270

HYDRAULIC HOSE

4200 mm

1шт.

38

166651A1

HOSE ASSY.

4400 mm

1шт.

39

KHJ10270

HYDRAULIC HOSE

4200 mm

1шт.

40

166651A1

HOSE ASSY.

4400 mm

1шт.

41

KAJ3524

HYDRAULIC HOSE

1шт.

42

159019A1

HOSE ASSY.

900 mm

1шт.

45

156554A1

ELBOW

Incl. 46

4шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

47

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 48

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

51

KRJ5903

MANIFOLD

1шт.

52

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

M8 x 100

4шт.

53

153081A1

WASHER

W M8

4шт.

55

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

56

153081A1

WASHER

W M8

4шт.

57

KHJ1394

CLAMP

3шт.

60

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

2шт.

61

153081A1

WASHER

W M8

2шт.

62

150860A1

COLLAR

1шт.

63

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

154

KHJ10250

CLAMP

2шт.

155

166350A1

BOLT

M8 x 20

4шт.

156

KHJ1249

CLAMP

3шт.

157

166350A1

BOLT

M8 x 20

6шт.

158

159039A1

CLAMP

1шт.

159

166350A1

BOLT

M8 x 20

2шт.

162

KHJ1250

SEAL, RUBBER

RUBBER SEAL

3шт.

163

KTA1036

SEAL, RUBBER

RUBBER SEAL

1шт.

164

150071A1

MOUNTING CLIP

380 mm

1шт.
