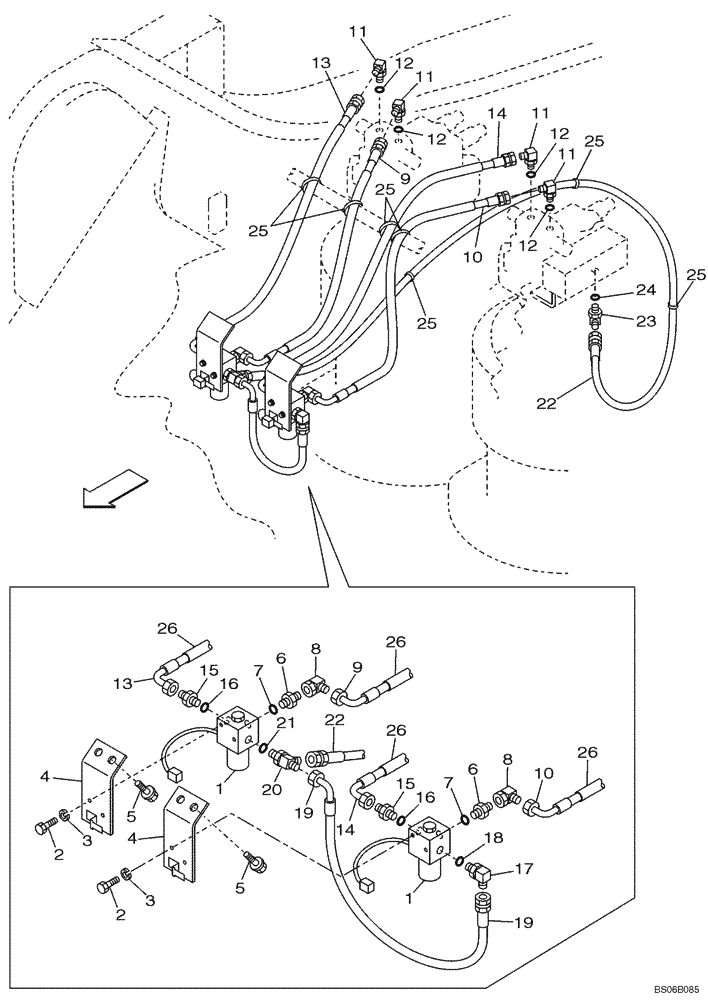

Запчасти Case CX700 (08-026-01[00]) - HYDRAULICS - FREE SWING (08) - HYDRAULICS

1

159205A1

VALVE

Solenoid, See Figure 08-249-00 01

2шт.

2

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

3

183-106VR

SPRING WASHER

4шт.

4

KWJ10660

SUPPORT

2шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

6

162366A1

ADAPTER

Incl. 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

163814A1

ELBOW

2шт.

9

KWJ10650

HYDRAULIC HOSE,6.35 mm ID x 750.00 mm

1шт.

10

KWJ10670

HYDRAULIC HOSE,6.35 mm ID x 700.00 mm

1шт.

11

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 12

4шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

KWJ10650

HYDRAULIC HOSE,6.35 mm ID x 750.00 mm

1шт.

14

KSJ2780

HYDRAULIC HOSE,6.35 mm ID x 780.00 mm

1шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 16

2шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

161483A1

HOSE ASSY.

1шт.

20

159497A1

TEE

Incl. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

KAJ3241

HYDRAULIC HOSE

1шт.

23

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 14

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

150071A1

MOUNTING CLIP

1шт.

26

150488A1

PLASTIC-RUBBER TUBE

4шт.
