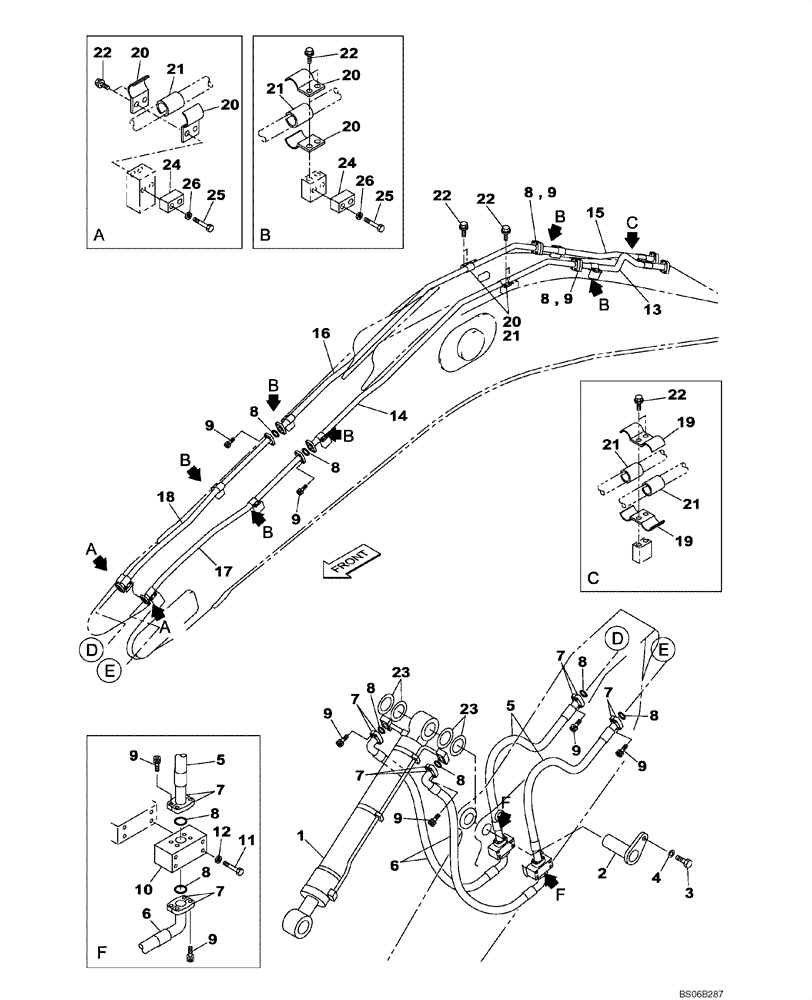

Запчасти Case CX700 (08-023-00[01]) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER (5.00 M) (08) - HYDRAULICS

1

KWV0013

BUCKET CYLINDER

Bucket; See Figure 08-303-00 01

1шт.

2

KWV0046

PIN

1шт.

3

102R020Y035R

BOLT

M20 x 35

1шт.

4

KWV0090

SPACER

1шт.

5

KWV11650

HYDRAULIC HOSE

2400 mm

2шт.

6

KWV11660

HYDRAULIC HOSE

1300 mm

2шт.

7

150124A1

FLANGE

16шт.

8

164450A1

O-RING

12шт.

9

862-14050

HEX SOC SCREW,M14 x 50mm, Cl 12.9

M14 x 50

48шт.

10

KWV11640

VALVE SECTION

2шт.

11

827-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

8шт.

12

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

8шт.

13

KWV10450

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

14

KWV11580

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

15

KWV10470

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

16

KWV11590

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

17

KWV11300

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

18

KWV11310

HYD TUBE,34.7 mm ID x 42.7 mm OD

1шт.

19

KWV0086

CLAMP

2шт.

20

KWV0087

CLAMP

20шт.

21

KWV11570

GROMMET

12шт.

22

165929A1

BOLT,Sems, M16

M16 x 50

26шт.

23

KMV1518

SHIM,0.6mm Thk

1шт.

24

KWV0115

SPACER

8шт.

25

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

16шт.

26

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W 16

16шт.
