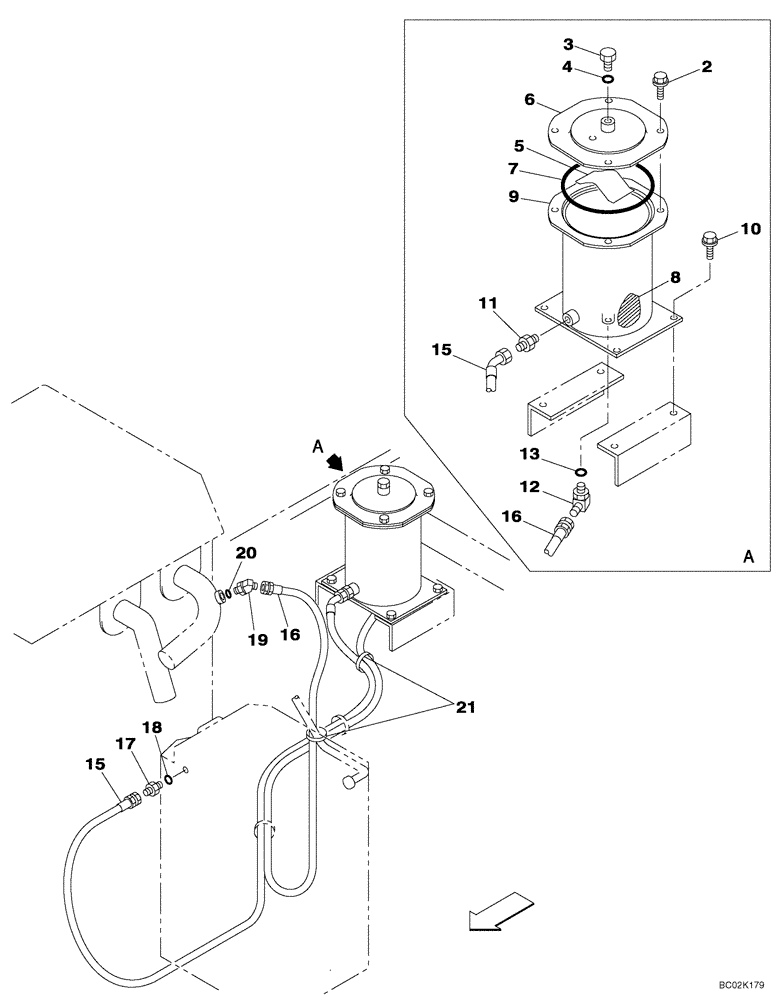

Запчасти Case CX460 (08-06) - HYDRAULICS - BYPASS FILTER (08) - HYDRAULICS

2

166351A1

BOLT,Sems, M10 x 20mm

4шт.

3

159285A1

PLUG

Incl. 4

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ1588

SPRING

1шт.

6

KHJ1564

COVER

1шт.

7

KHJ1404

O-RING

1шт.

8

159282A1

HYDRAULIC OIL FILTER

1шт.

9

KHJ2592

HOUSING

1шт.

10

166052A1

BOLT

4шт.

11

KHJ2012

ORIFICE

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

FAJ0419

HOSE

1шт.

16

KAJ3472

HYDRAULIC HOSE

1шт.

17

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

150933A1

ELBOW

Incl. 20

1шт.

20

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

150071A1

MOUNTING CLIP

1шт.
