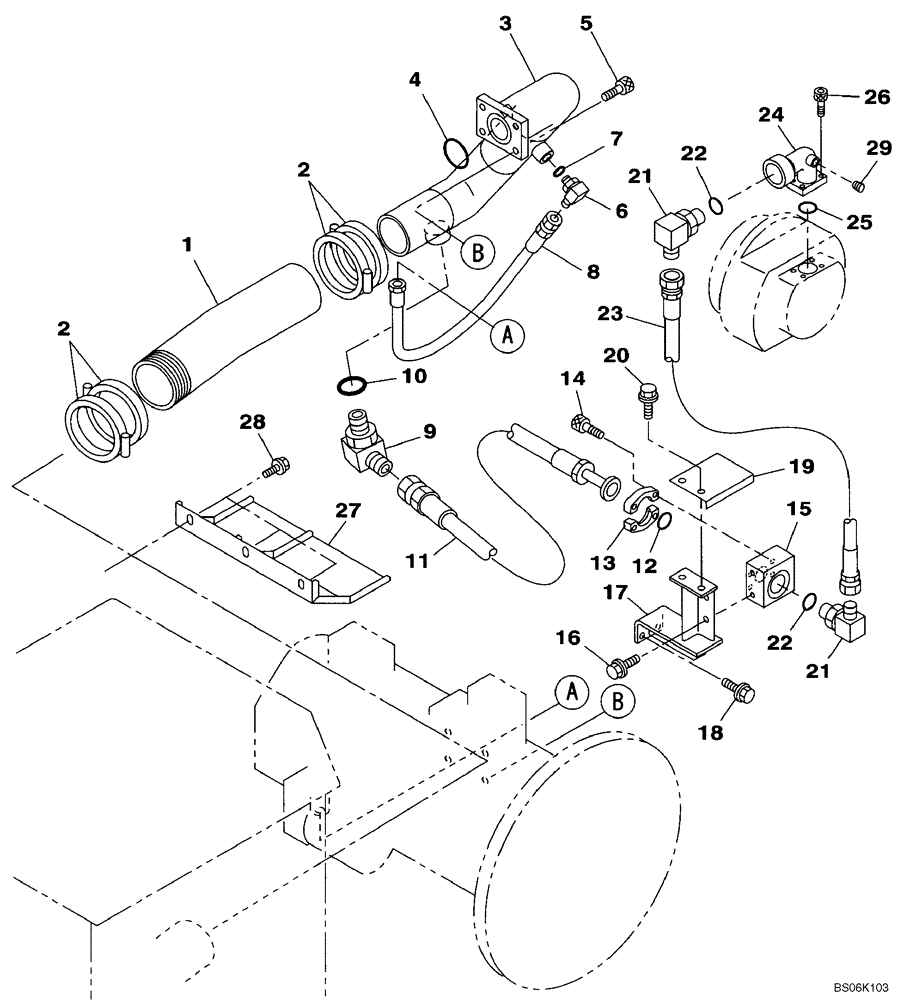

Запчасти Case CX460 (08-03) - HYDRAULICS - PUMP SUCTION LINE (08) - HYDRAULICS

1

KRJ3695

HOSE

1шт.

2

150905A1

CLAMP

4шт.

3

KTJ10520

HYD TUBE,80.7 mm ID x 89.1 mm OD

1шт.

4

154705A1

O-RING

1шт.

5

862-16035

HEX SOC SCREW,M16 x 35mm, Cl 12.9

4шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Incl. 7

1шт.

7

154503A1

O-RING

1шт.

8

KTJ1991

HYDRAULIC HOSE,19.05 mm ID x 750.00 mm

1шт.

9

157583A1

ELBOW

90 degree, 1 1/2", Incl. 10

1шт.

10

154583A1

O-RING

1шт.

11

KTJ10530

HYDRAULIC HOSE,38.10 mm ID x 930.00 mm

1шт.

12

168211A1

O-RING

1шт.

13

162338A1

SHIN

2шт.

14

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

15

KTJ10550

MANIFOLD VALVE

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

17

KTJ10560

SUPPORT

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

19

KTJ10540

COVER

1шт.

20

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

21

157583A1

ELBOW

90 degree, 1 1/2", Incl. 22

2шт.

22

154583A1

O-RING

1шт.

23

KTJ10580

HYDRAULIC HOSE,38.10 mm ID x 430.00 mm

1шт.

24

KTJ10590

HYD TUBE,35.7 mm ID x 42.7 mm OD

1шт.

25

164450A1

O-RING

1шт.

26

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

27

KTJ10690

COVER

1шт.

28

166352A1

BOLT

3шт.

29

150824A1

PLUG

2шт.
