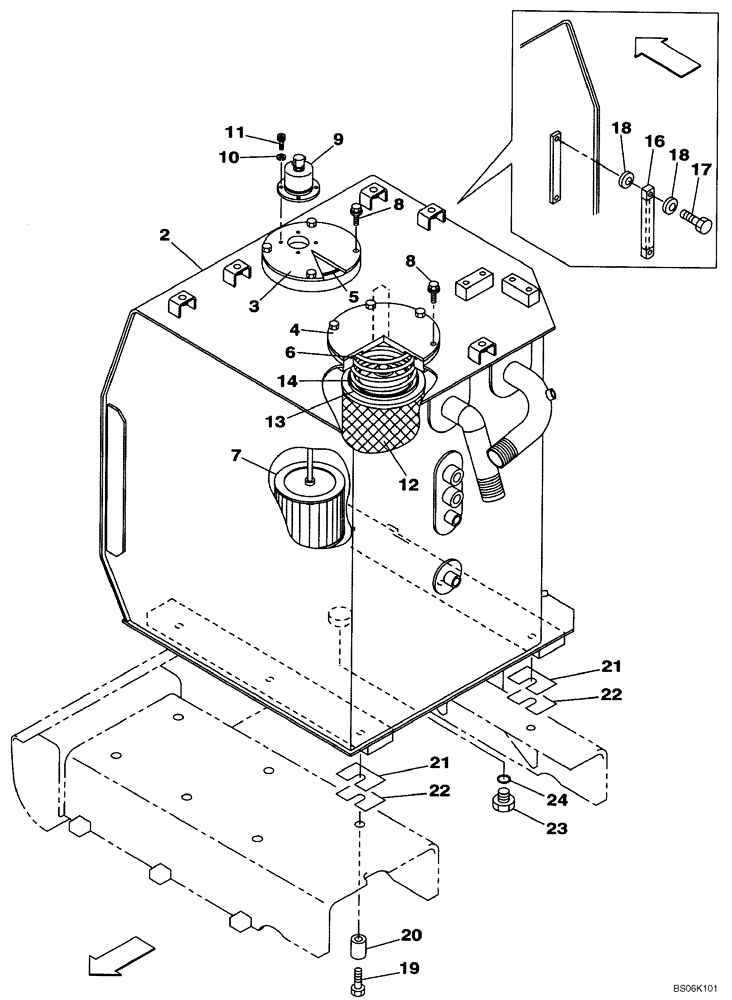

Запчасти Case CX460 (08-01) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

KTJ10270

TANK, HYDRAULIC OIL

Hydraulic Oil; Incl. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Tank, Oil

1шт.

3

KTJ2044

COVER

1шт.

4

KTJ2105

COVER

1шт.

5

154837A1

O-RING

1шт.

6

KHJ1252

O-RING

1шт.

7

KTJ2036

HYDRAULIC OIL FILTER

1шт.

8

166052A1

BOLT

10шт.

9

KHJ1781

BREATHER

Incl. 9A - 9C

1шт.

9a

159702A1

HYDRAULIC OIL FILTER

Not Illustrated

1шт.

9b

159703A1

GASKET

Not Illustrated

1шт.

9c

KHJ1492

CAP

Not Illustrated

1шт.

10

892-11006

LOCK WASHER,M6

4шт.

11

862-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

12

KTJ2037

HYDRAULIC OIL FILTER

1шт.

13

KTJ2038

VALVE, PRESSURE RELI

EF

1шт.

14

KTJ2106

COMPRESSION SPRING

1шт.

15

163560A1

SIGHTGLASS

Incl. 16 - 18

1шт.

16

163561A1

GAUGE

1шт.

17

159492A1

BOLT

2шт.

18

159493A1

SEALING WASHER

SEAL WASHER

4шт.

19

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

20

162301A1

SPACER

6шт.

21

150166A1

SHIM

0,80 mm (0,032 in)

1шт.

22

150479A1

SHIM

2,00 mm (0,079 in)

1шт.

23

152924A1

PLUG

Incl. 24

1шт.

24

154503A1

O-RING

1шт.
