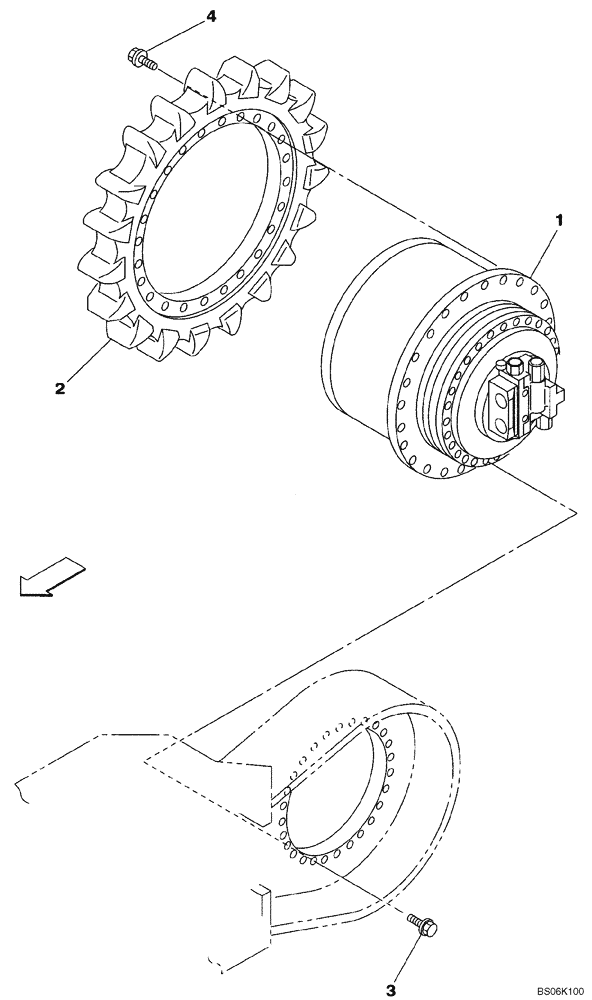

Запчасти Case CX460 (06-01) - TRAVEL MOTOR AND REDUCTION GEAR (06) - POWER TRAIN

1

KTA10190

MOTO-REDUCTION GEAR

See Fig. 06-02 & 06-03

2шт.

1

KTA10190R

REMAN-MOTO REDUCTION

CX460 CRAWLER EXCAVATOR TIER 3 (NA) (1/07-), Reman for New PN KTA10190

2шт.

1

KTA10190C

CORE-MOTO-REDUCTION UNIT

Return Number

2шт.

1

KTA10192R

REMAN-MOTO REDUCTION

Reman for New P/N KTA10190, KTA10192 and Reman P/N KTA10190R

2шт.

1

KTA10192C

CORE-MOTO-REDUCTION UNIT

Return Number

2шт.

2

KTA1069

SPROCKET

2шт.

3

166477A1

BOLT,Sems, M24 x 90mm

M24 x 90

54шт.

4

105R024Y070R

BOLT

M24 x 70

48шт.
