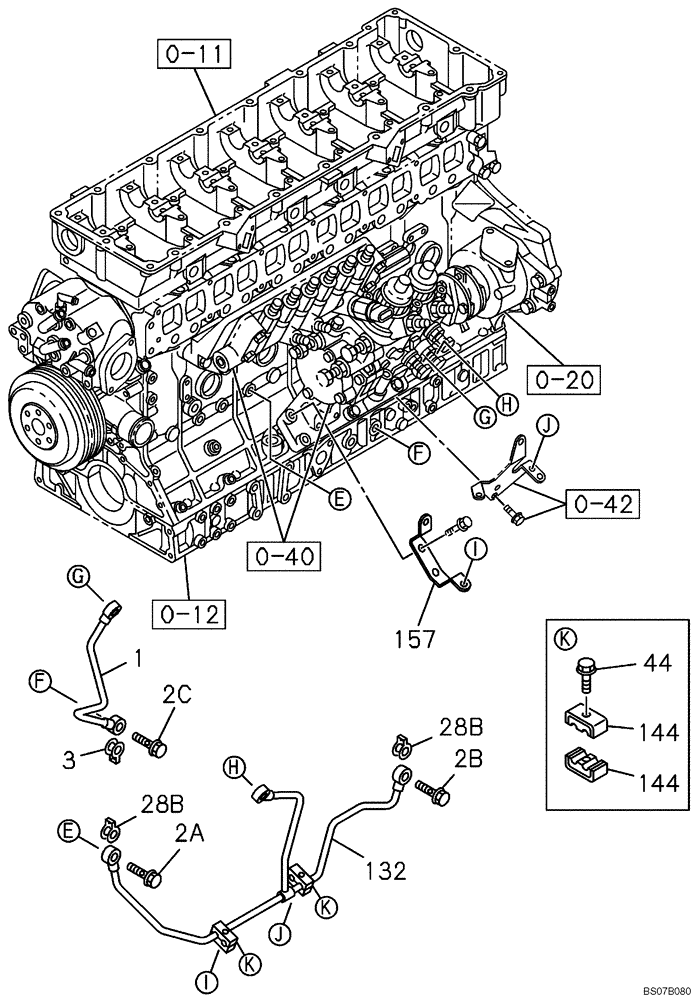

Запчасти Case CX460 (02-39) - OIL CIRCUIT (02) - ENGINE

0-11

REF

INSTRUCTION

See Figure 02-11

1шт.

0-12

REF

INSTRUCTION

See Figure 02-13

1шт.

0-20

REF

INSTRUCTION

See Figure 02-18

1шт.

0-40

REF

INSTRUCTION

See Figure 03-03

1шт.

0-42

REF

INSTRUCTION

See Figure 03-07

1шт.

1

87605176

PIPE

1шт.

2a

426635A1

BOLT

M10 x 21

1шт.

2b

76600013

BOLT

M14 x 33

1шт.

2c

72109743

BOLT

M10 x 21

1шт.

3

87605179

GASKET

1шт.

28b

87596960

GASKET

2шт.

44

87605184

BOLT

M6 x 30

2шт.

132

87605223

FUEL TUBE

1шт.

144

426415A1

CLIP

4шт.

157

87605229

BRACKET

1шт.
