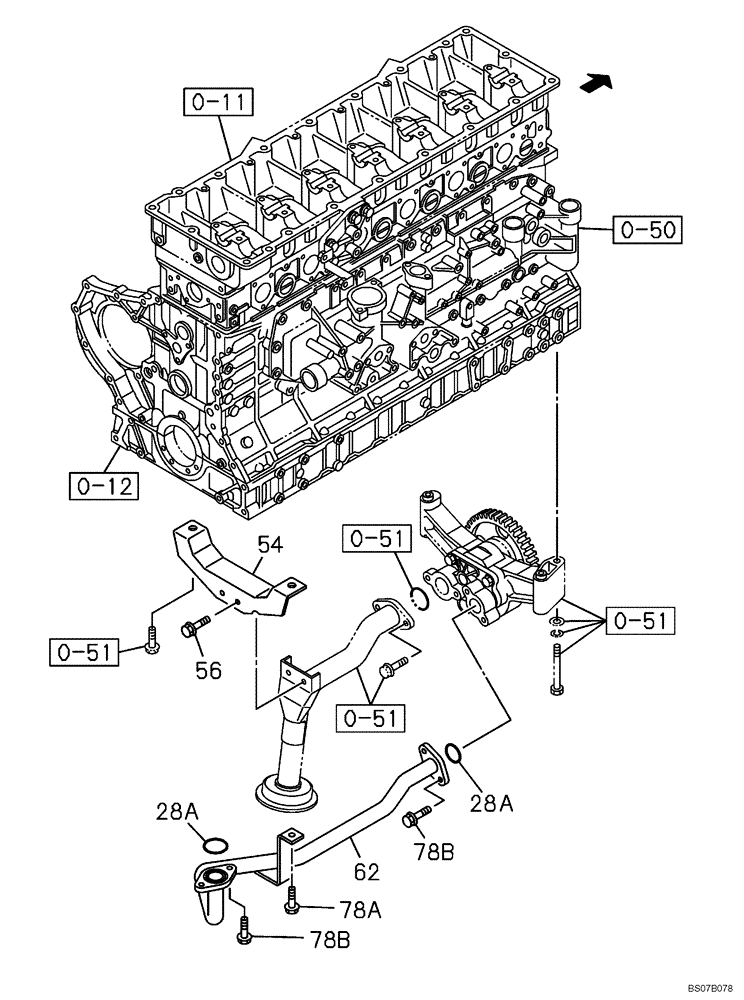

Запчасти Case CX460 (02-37) - OIL CIRCUIT (02) - ENGINE

0-11

REF

INSTRUCTION

See Figure 02-11

1шт.

0-12

REF

INSTRUCTION

See Figure 02-13

1шт.

0-50

REF

INSTRUCTION

See Figure 02-34

1шт.

0-51

REF

INSTRUCTION

See Figure 02-36

1шт.

28a

87597773

GASKET

2шт.

54

86987278

STAY

1шт.

56

87595866

BOLT

2шт.

62

87605209

PIPE

1шт.

78a

87595866

BOLT

M8 x 16

1шт.

78b

87595918

BOLT

M8 x 25

4шт.
