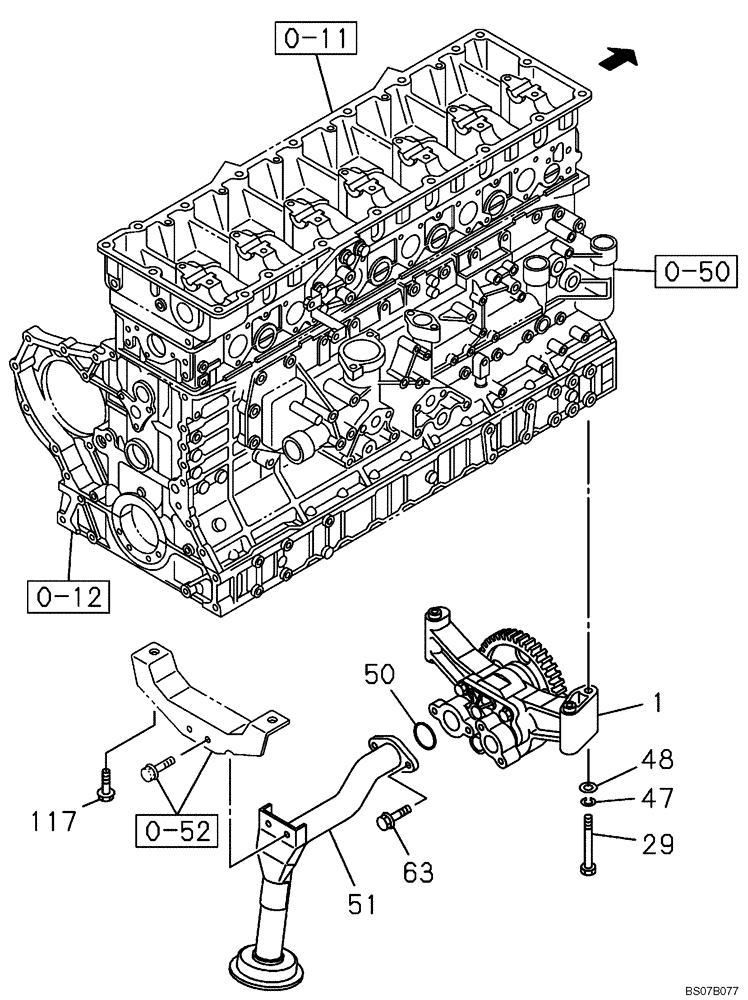

Запчасти Case CX460 (02-36) - OIL PUMP - STRAINER (02) - ENGINE

0-11

REF

INSTRUCTION

See Figure 02-11

1шт.

0-12

REF

INSTRUCTION

See Figure 02-13

1шт.

0-52

REF

INSTRUCTION

See Figure 02-37

1шт.

1

87604608

ENGINE OIL PUMP

1шт.

1

87604608R

REMAN-ENG OIL PUMP

CX460 CRAWLER EXCAVATOR TIER 3 (NA) (1/07-)

1шт.

1

87604608C

CORE-ENGINE OIL PUMP

Return Number

1шт.

29

87604609

BOLT

M10 x 80

3шт.

47

87605107

WASHER

3шт.

48

87605108

WASHER

3шт.

50

71455211

SEAL

1шт.

51

87605123

FILTER STRAINER

1шт.

63

87595918

BOLT

2шт.

117

87595866

BOLT

2шт.
