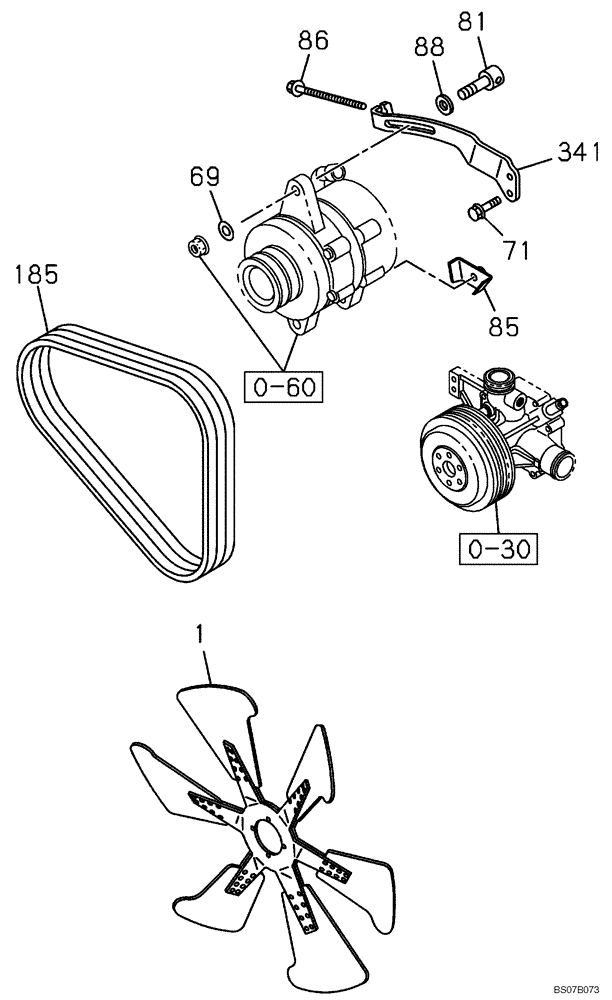

Запчасти Case CX460 (02-32) - BELT AND VENTILATOR - FAN GUARD (02) - ENGINE

0-30

REF

INSTRUCTION

See Figure 02-26

1шт.

0-60

REF

INSTRUCTION

See Figure 04-01

1шт.

1

443709A1

FAN

1шт.

69

289793A1

WASHER

1шт.

71

87597701

BOLT

M12 x 33

2шт.

81

288759A1

SCREW

M12 x 45

1шт.

85

437982A1

SUPPORT

1шт.

86

71455244

SCREW

M10 x 155

1шт.

88

438024A1

WASHER

1шт.

185

72110358

SET OF 3 BELTS

1шт.
