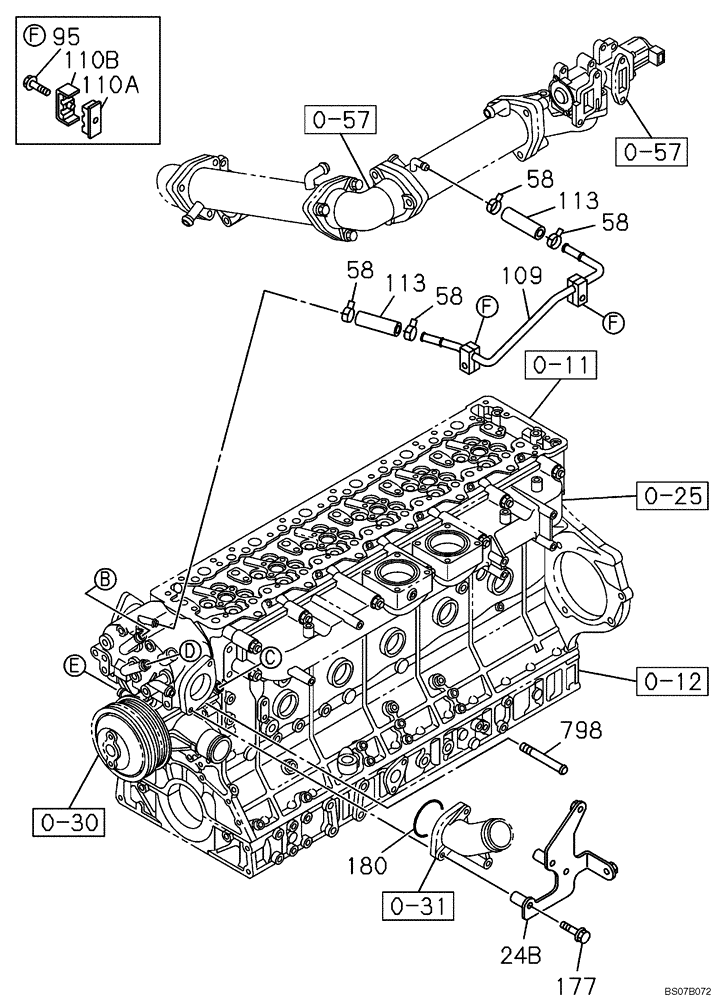

Запчасти Case CX460 (02-31) - ENGINE WATER CIRCUIT (02) - ENGINE

0-11

REF

INSTRUCTION

See Figure 02-11

1шт.

0-12

REF

INSTRUCTION

See Figure 02-13

1шт.

0-25

REF

INSTRUCTION

See Figure 02-22

1шт.

0-30

REF

INSTRUCTION

See Figure 02-26

1шт.

0-31

REF

INSTRUCTION

See Figure 02-28

1шт.

0-57

REF

INSTRUCTION

See Figure 02-42

1шт.

24b

87603797

BRACKET

1шт.

58

87603700

HOSE CLIP

4шт.

95

87531032

BOLT

2шт.

109

87603834

PIPE

1шт.

110a

426431A1

MOUNTING CLIP

2шт.

110b

426437A1

MOUNTING CLIP

2шт.

113

87379457

HOSE

2шт.

177

87595839

BOLT

2шт.

180

87603836

GASKET

1шт.

798

76591841

PIPE

1шт.
