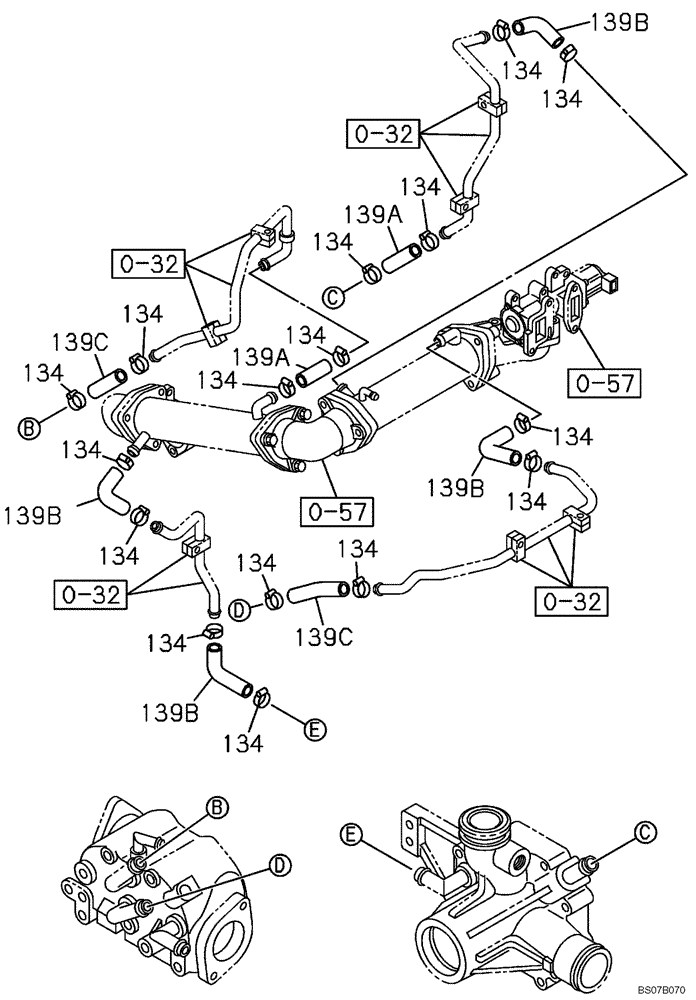

Запчасти Case CX460 (02-29) - ENGINE WATER CIRCUIT (02) - ENGINE

0-32

REF

INSTRUCTION

See Figure 02-30

1шт.

0-57

REF

INSTRUCTION

See Figure 02-42

1шт.

134

87603793

HOSE CLIP

16шт.

139a

87378567

HOSE,6579.00 mm

2шт.

139b

87603794

HOSE

4шт.

139c

87603795

HOSE

2шт.
