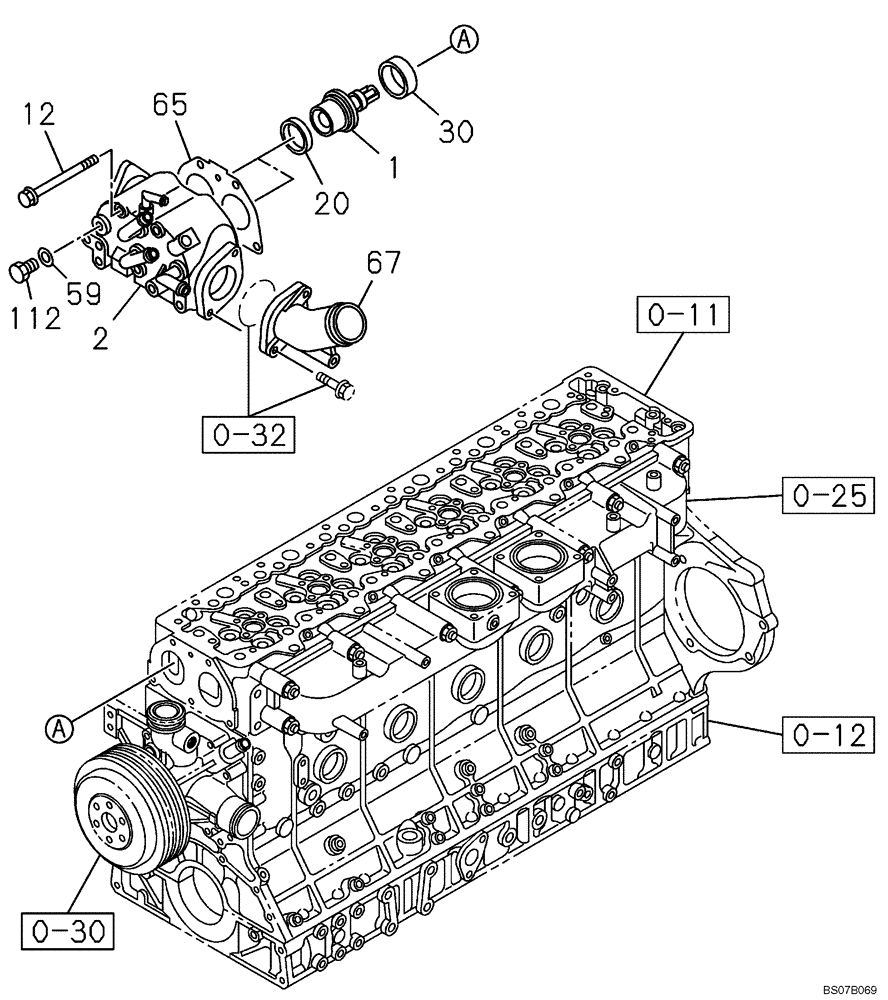

Запчасти Case CX460 (02-28) - ENGINE WATER CIRCUIT - THERMOSTAT (02) - ENGINE

0-11

REF

INSTRUCTION

See Figure 02-11

1шт.

0-12

REF

INSTRUCTION

See Figure 02-13

1шт.

0-25

REF

INSTRUCTION

See Figure 02-22

1шт.

0-30

REF

INSTRUCTION

See Figure 02-26

1шт.

0-32

REF

INSTRUCTION

See Figure 02-31

1шт.

1

72110346

THERMOSTAT

1шт.

2

87603767

HOUSING

1шт.

12

87601344

BOLT

M10 x 120

5шт.

20

426198A1

O-RING

2шт.

30

87603768

SPACER

2шт.

59

426423A1

GASKET

1шт.

65

87603769

GASKET

1шт.

67

87603775

DUCT

1шт.

112

87379489

PLUG

M14 x 14

1шт.
