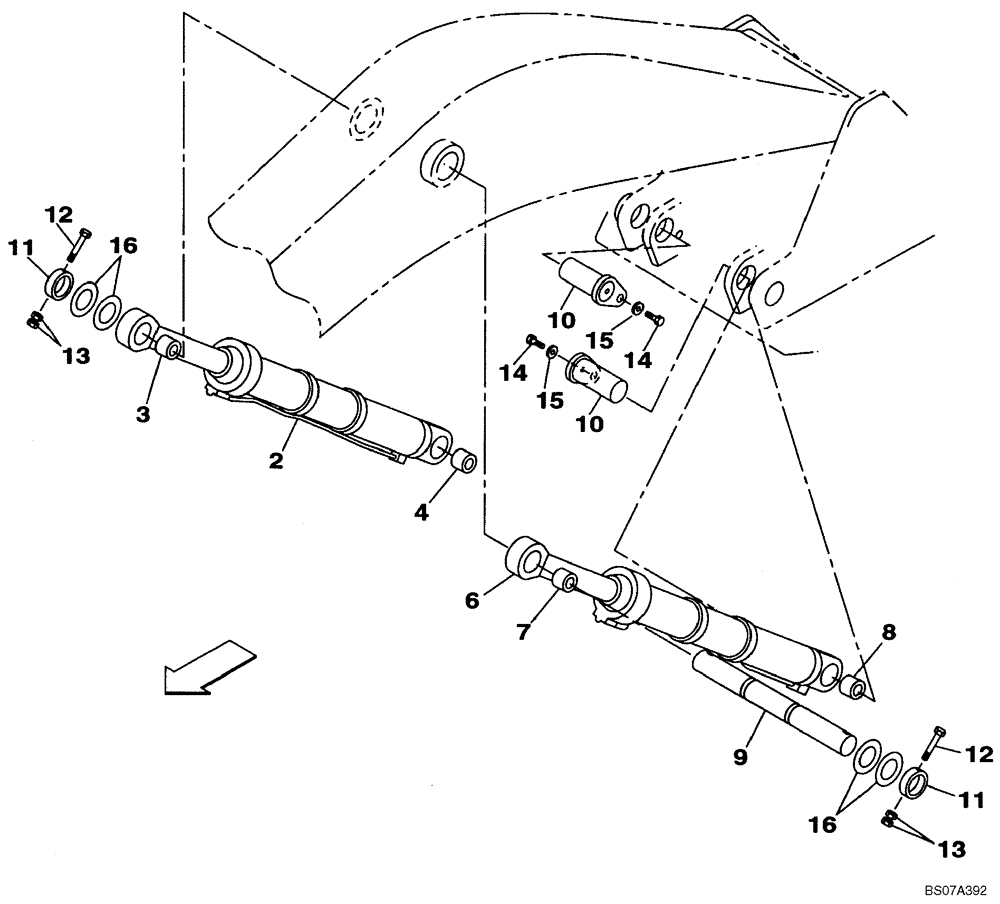

Запчасти Case CX460 (09-37) - BOOM CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

2

KTV10680

HYDRAULIC CYLINDER

Boom; Right Hand; Incl. 3, 4; See Figure 08-85

1шт.

2

KTV10681R

REMAN-HYD CYLINDER

CX460 CRAWLER EXCAVATOR TIER 3 (NA), Boom, Right Hand (1/07-), Reman for New PN KTV10680

1шт.

2

KTV10681C

CORE-HYD CYLINDER

Return Number

1шт.

3

KTV1124

SELF LUB RING

1шт.

4

KTV1123

SELF LUB RING

1шт.

6

KTV10690

HYDRAULIC CYLINDER

Boom; Left Hand; Incl. 7, 8; See Figure 08-86

1шт.

6

KTV10691R

REMAN-HYD CYLINDER

CX460 CRAWLER EXCAVATOR TIER 3 (NA), Boom, left Hand (1/07-), Reman for New PN KTV10690

1шт.

6

KTV10691C

CORE-HYD CYLINDER

Return Number

1шт.

7

KTV1124

SELF LUB RING

1шт.

8

KTV1123

SELF LUB RING

1шт.

9

KTV1232

PIN

1шт.

10

KTV1272

PIN

2шт.

11

153808A1

RING, LOCKING

RING, LOCK

2шт.

12

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

2шт.

13

829-13424

NUT,M24 x 2, Cl 10

4шт.

14

102R020Y035R

BOLT

2шт.

15

KTV1185

SPACER

2шт.

16

167529A1

ADJUSTING PLATE

4шт.
