(09-30) - CAB - REAR WINDOW - HANDLE - WINDSHIELD WASHER

Запчасти Case CX460 (09-30) - CAB - REAR WINDOW - HANDLE - WINDSHIELD WASHER (09) - CHASSIS/ATTACHMENTS

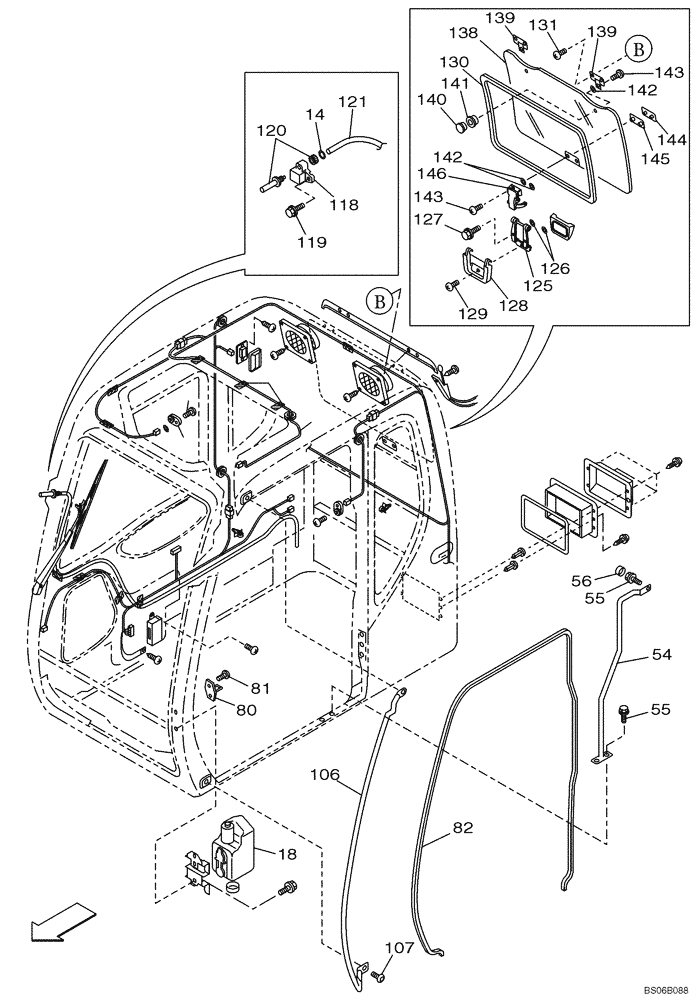

Схема запчастей Case CX460 - (09-30) - CAB - REAR WINDOW - HANDLE - WINDSHIELD WASHER (09) - CHASSIS/ATTACHMENTS
143
54
120
131
142
139
146
82
143
139
107
142
144
80
138
145
18
119
55
121
55
126
140
130
125
127
128
118
141
81
129
14
106
56
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KHN10110

CAB

Also Includes Parts on Figures 09-26 - 09-31

1шт.

14

161363A1

GROMMET

1шт.

18

REF

INSTRUCTION

See Figure 04-08 For Windshield Wiper and Washer

1шт.

54

KHN2677

HANDLE

1шт.

55

KHN2678

BOLT,Spcl

M10 x 25

3шт.

56

KHN2679

CAP

1шт.

80

KHN2701

CATCH PLATE

1шт.

81

KHN2702

SCREW,Spcl

M8 x 20

2шт.

82

KHN2703

WEATHERSTRIP

1шт.

106

KHN2932

HANDLE

1шт.

107

KHN2727

BOLT,Spcl

M12 x 30

2шт.

118

KHN2744

SUPPORT

1шт.

119

KHN2745

BOLT,Spcl

M6 x 50

1шт.

120

KHN2746

NOZZLE

1шт.

121

KHN2747

HOSE

1шт.

125

KHN2754

BRACKET

1шт.

126

KHN2755

WASHER

2шт.

127

KHN2756

BOLT,Spcl

M6 x 16

2шт.

128

KHN2757

HANDLE

1шт.

129

KHN2758

SCREW,Spcl

M5 x 10

1шт.

130

KHN2759

WEATHERSTRIP

1шт.

131

KHN2768

SCREW,Spcl

M6 x 16

4шт.

KHN2926

WINDOW ASSY

Incl. 138 - 146

1шт.

138

KHN3006

GLASS

1шт.

139

KHN2760

HINGE

2шт.

140

KHN2761

NUT

2шт.

141

KHN2762

GROMMET

2шт.

142

KHN2763

WASHER

4шт.

143

KHN2931

SCREW,Spcl

4шт.

144

KHN2765

STIFFENER

1шт.

145

KHN2766

GASKET

1шт.

146

KHN2767

HANDLE

1шт.
