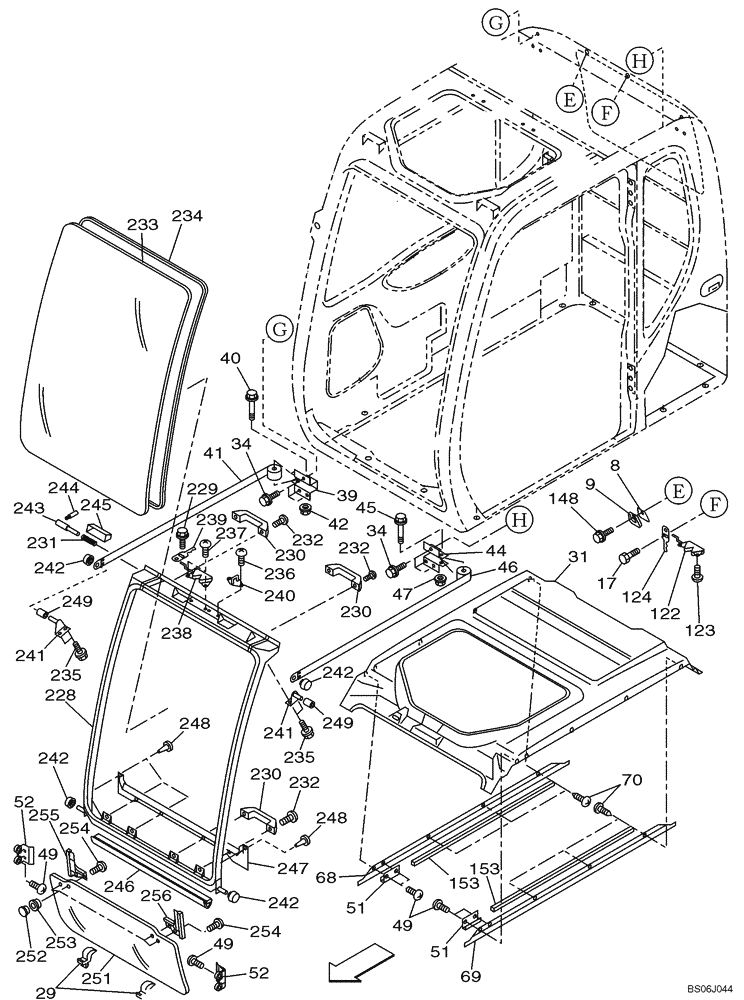

Запчасти Case CX460 (09-29) - CAB - WINDOW, FRONT (09) - CHASSIS/ATTACHMENTS

KHN10110

CAB

Also Includes Parts on Figures 09-26 - 09-31

1шт.

8

161353A1

SHIM

1шт.

9

161352A1

STOP

1шт.

17

159584A1

FLANGE BOLT,Shldr

1шт.

29

KHN2654

RUBBER BLOCK

2шт.

31

KHN3259

ROOF LINING

1шт.

34

KHN2896

BOLT,Spcl

M6 x 16

6шт.

KHN2663

SPRING

Incl. 39 - 42

1шт.

39

KHN2664

SUPPORT

1шт.

40

KHN2665

BOLT,Spcl

M6 x 10

1шт.

41

KHN2666

SPRING

1шт.

42

161453A1

FLANGE NUT

1шт.

KHN2667

SPRING

Incl. 44 - 47

1шт.

44

KHN2668

SUPPORT

1шт.

45

KHN2665

BOLT,Spcl

M6 x 10

1шт.

46

KHN2669

SPRING

1шт.

47

161453A1

FLANGE NUT

1шт.

49

KHN2671

SCREW

M6 x 20

8шт.

51

KHN2673

STOP

2шт.

52

KHN2674

LOCKING TAB

2шт.

68

KHN2692

GUIDE

1шт.

69

KHN2693

GUIDE

1шт.

70

KHN2694

SCREW,Spcl

M5 x 16

6шт.

122

KHN2750

LOCK ASSY

1шт.

123

KHN2751

SCREW,Spcl

M8 x 16

2шт.

124

KHN2752

CATCH PLATE

1шт.

148

KHN2850

BOLT,Spcl

M10 x 25

1шт.

153

KHN2881

SEAL PROTECTION

2шт.

KHN3622

WINDOW ASSY

Incl. 228 - 249

1шт.

228

KHN2857

WINDOW FRAME

1шт.

229

159584A1

FLANGE BOLT,Shldr

1шт.

230

161410A1

HANDLE

3шт.

231

161436A1

SPRING

1шт.

232

161411A1

SCREW

6шт.

233

KHN2632

WINDSHIELD

1шт.

234

KHN2633

WEATHERSTRIP

1шт.

235

KHN2686

BOLT,Spcl

M6 x 20

4шт.

236

KHN2702

SCREW,Spcl

M8 x 20

2шт.

237

KHN2751

SCREW,Spcl

M8 x 16

2шт.

238

KHN2830

LATCH ASSY.

1шт.

239

KHN2831

LEVER

1шт.

240

KHN2832

STRIKER PLATE

1шт.

241

KHN2833

SUPPORT

2шт.

242

KHN2834

ROLLER BEARING

4шт.

243

KHN2835

PIN

1шт.

244

KHN2836

LEVER

1шт.

245

KHN2837

GASKET

1шт.

246

KHN2838

SEAL

1шт.

247

KHN3623

PADDING

1шт.

248

KHN2840

FASTENER

4шт.

249

KHN3024

SHIELD

2шт.

KHN2617

WINDOW ASSY

Incl. 251 - 256

1шт.

251

KHN2634

CAB GLASS

1шт.

252

KHN2761

NUT

4шт.

253

KHN2762

GROMMET

4шт.

254

KHN2764

SCREW,Spcl

M5 x 10

4шт.

255

KHN2841

SEAL

1шт.

256

KHN2842

SEAL

1шт.
