(09-28) - CAB - ROOF, OPENABLE WINDOW

Запчасти Case CX460 (09-28) - CAB - ROOF, OPENABLE WINDOW (09) - CHASSIS/ATTACHMENTS

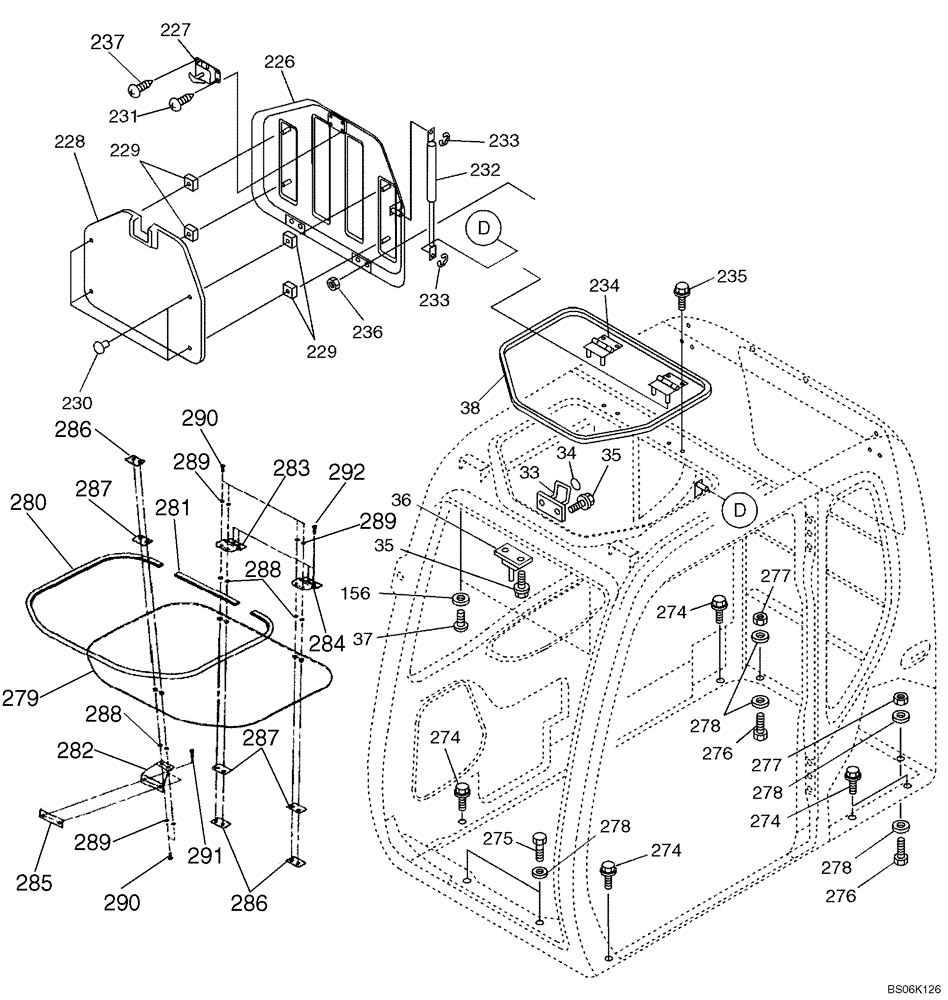

Схема запчастей Case CX460 - (09-28) - CAB - ROOF, OPENABLE WINDOW (09) - CHASSIS/ATTACHMENTS
36
277
278
278
229
290
230
285
156
278
282
274
292
229
233
274
278
288
34
234
287
274
287
288
277
283
289
235
276
35
232
228
284
289
279
237
35
281
286
291
280
38
289
226
274
231
290
37
227
286
33
276
275
236
233
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

KHN10110

CAB

Also Includes Parts on Figures 09-26 - 09-31

1шт.

KHN21750

CLIP

CLIP, Not Shown

1шт.

33

KHN2657

CATCH PLATE

1шт.

34

KHN2658

SEAL

2шт.

35

KHN2896

BOLT,Spcl

M6 x 16

4шт.

36

KHN2971

BAR

1шт.

37

KHN2661

RUBBER BLOCK

2шт.

38

KHN2662

WEATHERSTRIP

1шт.

156

KHN2908

WASHER

2шт.

KHN10230

HATCH

Incl. 226 - 237

1шт.

226

KHN3671

HATCH

1шт.

227

161451A1

LATCH ASSY.

1шт.

228

KHN3258

ROOF LINING

1шт.

229

KHN2824

SPACER

4шт.

230

KHN2825

ANCHOR

4шт.

231

KHN2682

SCREW,Spcl

M6 x 12

2шт.

232

KHN2827

GAS STRUT

2шт.

233

KHN2828

CIRCLIP

4шт.

234

KHN2909

HINGE

2шт.

235

KHN2896

BOLT,Spcl

M6 x 16

4шт.

236

161453A1

FLANGE NUT

4шт.

237

KHN3331

SCREW,Spcl

2шт.

274

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

5шт.

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

5шт.

275

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

276

ADS2876

BOLT

M12 x 50

2шт.

277

829-1412

NUT,M12, Cl 10.9

2шт.

278

150811A1

WASHER

M12

6шт.

REF

INSTRUCTION

ROOF WINDOW KIT, GLASS

1шт.

KHN14420

GLASS

Roof Window Kit; Incl. 279 - 292

1шт.

279

KHN14430

GLASS

1шт.

280

MFN5015

WEATHERSTRIP

1шт.

281

MFN5016

WEATHERSTRIP

1шт.

282

MFN5017

SUPPORT

Front

1шт.

283

KHN14440

SUPPORT

Rear, Right Hand

1шт.

284

KHN14450

SUPPORT

Rear, Left Hand

1шт.

285

MFN5020

SPACER

1шт.

286

KHN2765

STIFFENER

3шт.

287

KHN2766

GASKET

3шт.

288

KHN2763

WASHER

6шт.

289

MFN5021

WASHER

6шт.

290

KHN2764

SCREW,Spcl

6шт.

291

KHN2896

BOLT,Spcl

2шт.

292

KHN2896

BOLT,Spcl

4шт.
