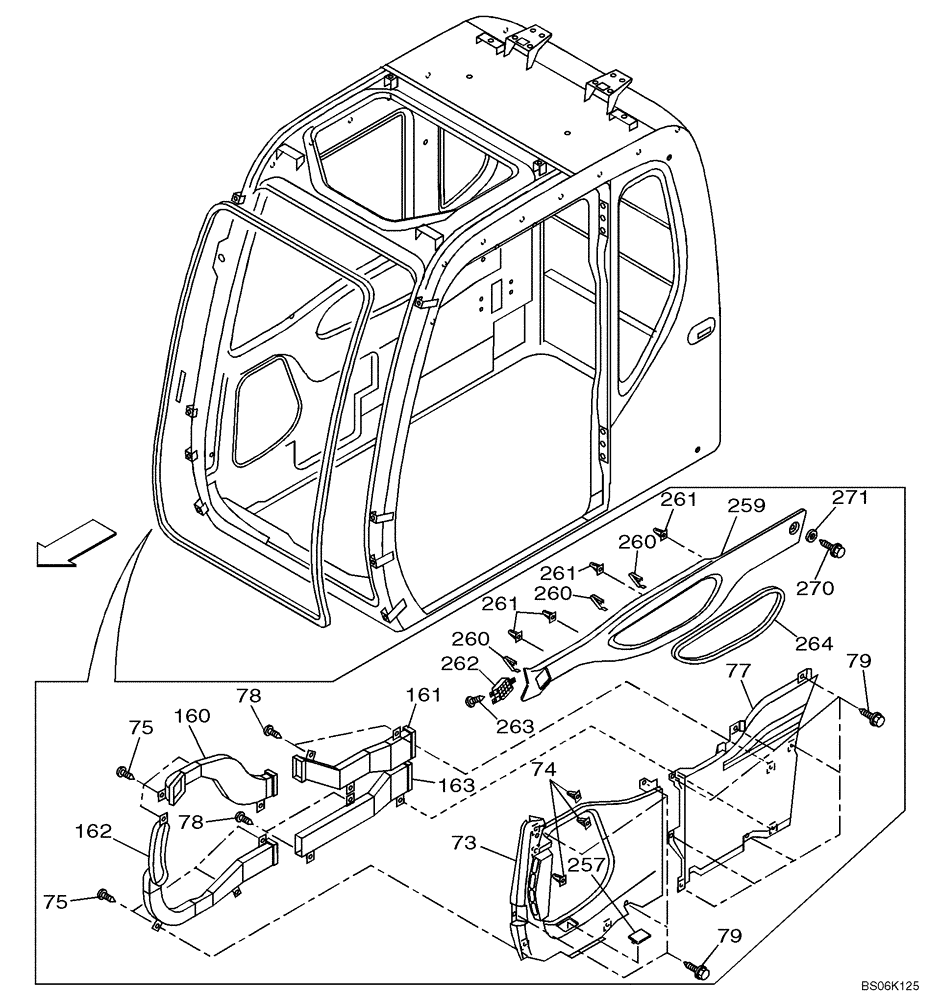

Запчасти Case CX460 (09-27) - CAB - DUCTS AND TRIM (09) - CHASSIS/ATTACHMENTS

KHN10110

CAB

Also Includes Parts on Figures 09-26 - 09-31

1шт.

73

KHN3641

TRIM PANEL

1шт.

74

KHN2292

COLLAR

3шт.

75

KHR3016

SELF-TAP SCREW

6шт.

77

KHN3621

TRIM PANEL

1шт.

78

KHR3016

SELF-TAP SCREW

6шт.

79

KHN2700

BOLT,Spcl

M6 x 16

12шт.

160

KHR4276

DUCT

1шт.

161

KHR4277

DUCT

1шт.

162

KHR4278

DUCT

1шт.

163

KHR4279

DUCT

1шт.

257

KHN3637

TRIM PANEL

1шт.

259

KHN3634

TRIM PANEL

1шт.

260

KHN2293

COLLAR

3шт.

261

KHN2292

COLLAR

4шт.

262

KHN3636

BOX

1шт.

263

KHN3022

SCREW

3шт.

264

KHN2294

SEAL

1шт.

270

KHN2316

BOLT

1шт.

271

150529A1

WASHER

1шт.
