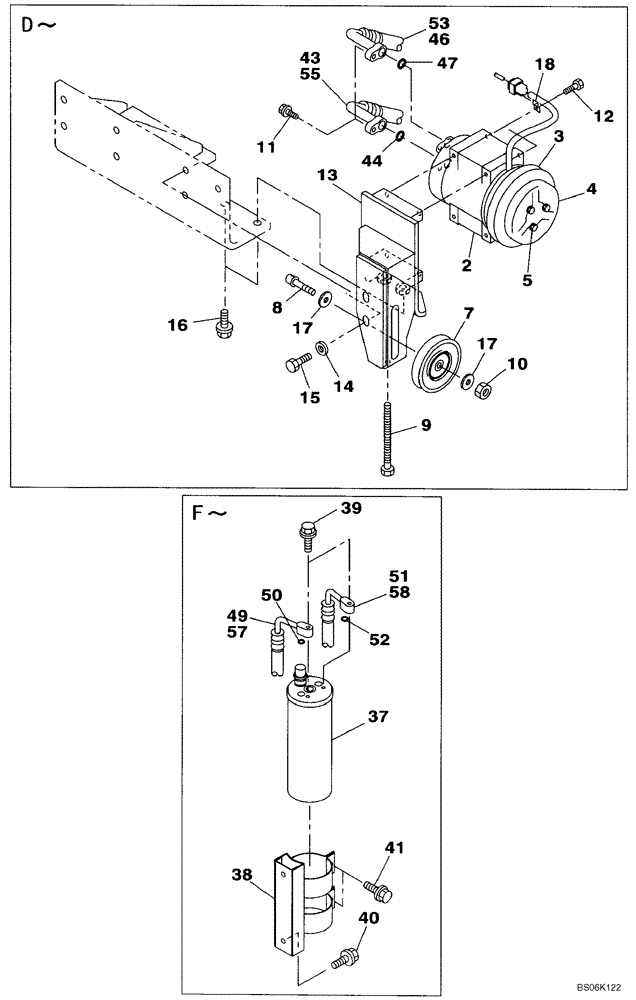

Запчасти Case CX460 (09-24) - CAB AIR CONDITIONING - CONDENSER - RECEIVER-DRYER - COMPRESSOR (09) - CHASSIS/ATTACHMENTS

2

KHR3197

COMPRESSOR

Incl. 3 - 5

1шт.

KHR3197R

REMAN-COMPRESSOR

CX460 Tier 3 (1/07-)

1шт.

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

3

KHR3198

CLUTCH

1шт.

4

KHR3974

PROTECTIVE COVER

1шт.

5

KHR3975

BOLT

3шт.

7

KHR11760

PULLEY

1шт.

8

157299A1

SHAFT

1шт.

9

159644A1

BOLT

1шт.

10

157292A1

NUT

M10 x 1.25

1шт.

11

162457A1

SPECIAL BOLT,Spcl

M8 x 25

2шт.

12

KAR0921

BOLT,Spcl

M8 x 90

4шт.

13

KTR10290

SUPPORT

1шт.

14

150811A1

WASHER

2шт.

15

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

17

151977A1

WASHER

W 10

2шт.

18

158962A1

CLIP

1шт.

37

KHR13590

RECEIVER-DRYER

See Figure 09-27, Replaces 167528A1, KHR3751

1шт.

38

KHR13600

BRACKET

Replaces 159635A1

1шт.

39

162043A1

BOLT,Spcl, M6

M6 x 28

2шт.

40

167320A1

BOLT,Spcl, M8 x 20mm

M8 x 20

2шт.

41

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

M6 x 20

2шт.

43

KHR13350

HOSE

Incl. 44, 45

1шт.

44

169053A1

O-RING

1шт.

45

KHR3053

CAP

Not Illustrated, See Figure 09-23

1шт.

46

KHR13360

HOSE

Incl. 47, 48

1шт.

47

169052A1

O-RING

1шт.

48

KHR3054

CAP

Not Illustrated, See Figure 09-23

1шт.

49

KHR3087

HOSE

Incl. 50

1шт.

50

169054A1

O-RING

2шт.

51

KHR3088

HOSE

Incl. 52

1шт.

52

169054A1

O-RING

2шт.

53

166124A1

PLASTIC-RUBBER TUBE

1000 mm

1шт.

55

158066A1

PLASTIC-RUBBER TUBE

1000 mm

1шт.

57

157768A1

PLASTIC-RUBBER TUBE

1300 mm

1шт.

58

151175A1

PLASTIC-RUBBER TUBE

3000 mm

1шт.
