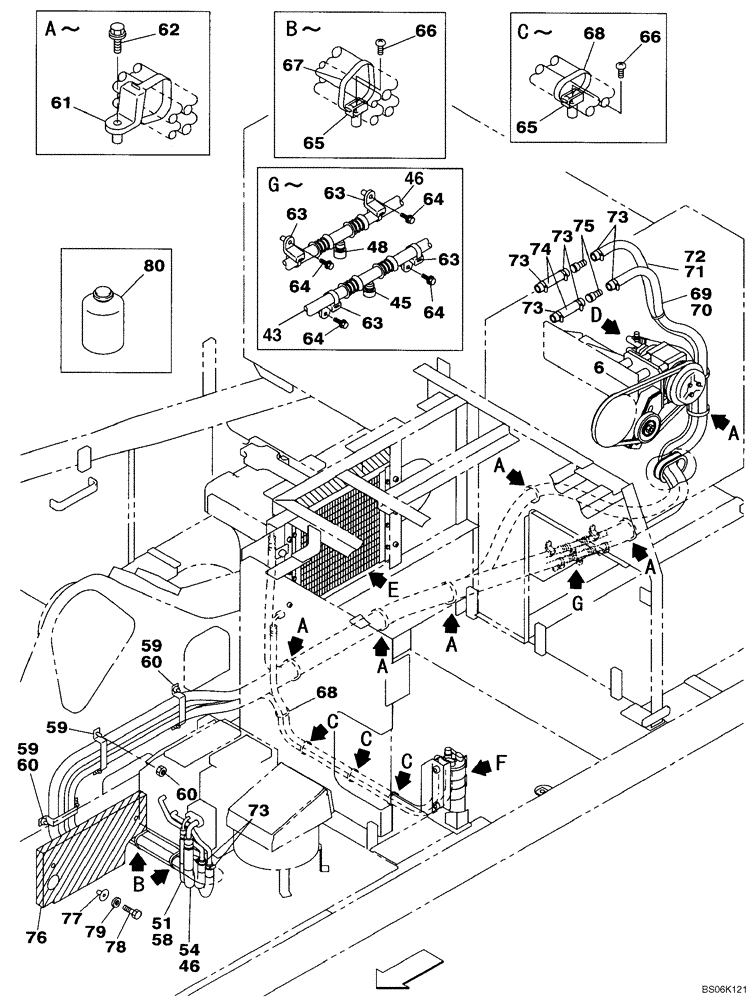

Запчасти Case CX460 (09-23) - CAB AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

6

KHR3089

BELT

1шт.

43

KHR13350

HOSE

Incl. 44, 45

1шт.

44

169053A1

O-RING

Not Illustrated, See Figure 09-24

2шт.

45

KHR3053

CAP

1шт.

46

KHR13360

HOSE

Incl. 47, 48

1шт.

47

169052A1

O-RING

Not Illustrated, See Figure 09-24

2шт.

48

KHR3054

CAP

1шт.

51

KHR3088

HOSE

Incl. 52

1шт.

52

169054A1

O-RING

Not Illustrated, See Figure 09-24

2шт.

54

KBR0722

PLASTIC-RUBBER TUBE

3600 mm

1шт.

58

151175A1

PLASTIC-RUBBER TUBE

3000 mm

1шт.

59

159037A1

MOUNTING CLIP

3шт.

60

150469A1

FLANGE NUT

M8

6шт.

61

KHR2581

CLAMP

7шт.

62

KHJ1215

BOLT,Spcl

M8 x 25

7шт.

63

KHR2584

CLAMP

4шт.

64

KHJ1215

BOLT,Spcl

M8 x 25

4шт.

65

150860A1

COLLAR

5шт.

66

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

67

150071A1

MOUNTING CLIP

380 mm

1шт.

68

150496A1

MOUNTING CLIP

250 mm

3шт.

69

KTR10310

HOSE

5400 mm

1шт.

70

151561A1

PLASTIC-RUBBER TUBE

5300 mm

1шт.

71

163161A1

HOSE,5600.00 mm

1шт.

72

163164A1

PLASTIC-RUBBER TUBE

5400 mm

1шт.

73

KRJ1062

COLLAR

8шт.

74

KHR0425

HOSE

100 mm

2шт.

75

KAR0215

NIPPLE, LUBE

NIPPLE

2шт.

76

KTR0531

FOAM INSULATION

1шт.

77

KHH0358

RETAINER

2шт.

78

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

79

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

80

KHP1144

CARTRIDGE

Gas, Refrigerant

1шт.
