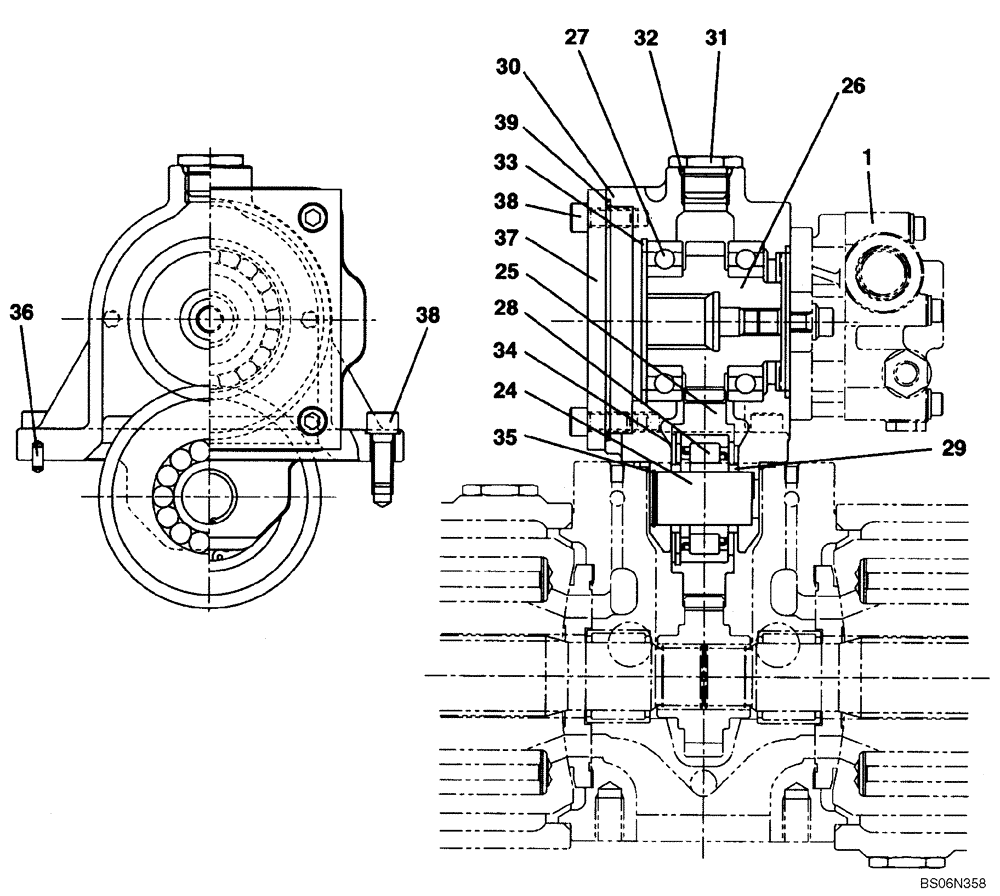

Запчасти Case CX460 (08-92) - HIGH PRESSURE PUMP - PUMP COUPLING (08) - HYDRAULICS

KTJ10810

HYDRAULIC PUMP

Includes All Parts On Figure 08-90 - 08-94

1шт.

KTJ10810R

REMAN-HYD PUMP

CX460 CRAWLER EXCAVATOR TIER 3 (NA), PUMP COUPLING (1/07-)

1шт.

KTJ10810C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

LJ014890

HYDRAULIC PUMP

See Figure 08-93

1шт.

LC00232

GEAR

Incl. 24 - 39

1шт.

24

NSS

NOT SOLD SEPARAT

Shaft, Idler

1шт.

25

NSS

NOT SOLD SEPARAT

Gear

1шт.

26

NSS

NOT SOLD SEPARAT

Gear

1шт.

27

NSS

NOT SOLD SEPARAT

Bearing, Ball

2шт.

28

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

29

NSS

NOT SOLD SEPARAT

Spacer

2шт.

30

NSS

NOT SOLD SEPARAT

Case

1шт.

31

155471A1

PLUG

1шт.

32

154503A1

O-RING

1шт.

33

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

34

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

35

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

36

NSS

NOT SOLD SEPARAT

Pin

1шт.

37

NSS

NOT SOLD SEPARAT

Cover

1шт.

38

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

8шт.

39

154776A1

O-RING

1шт.
