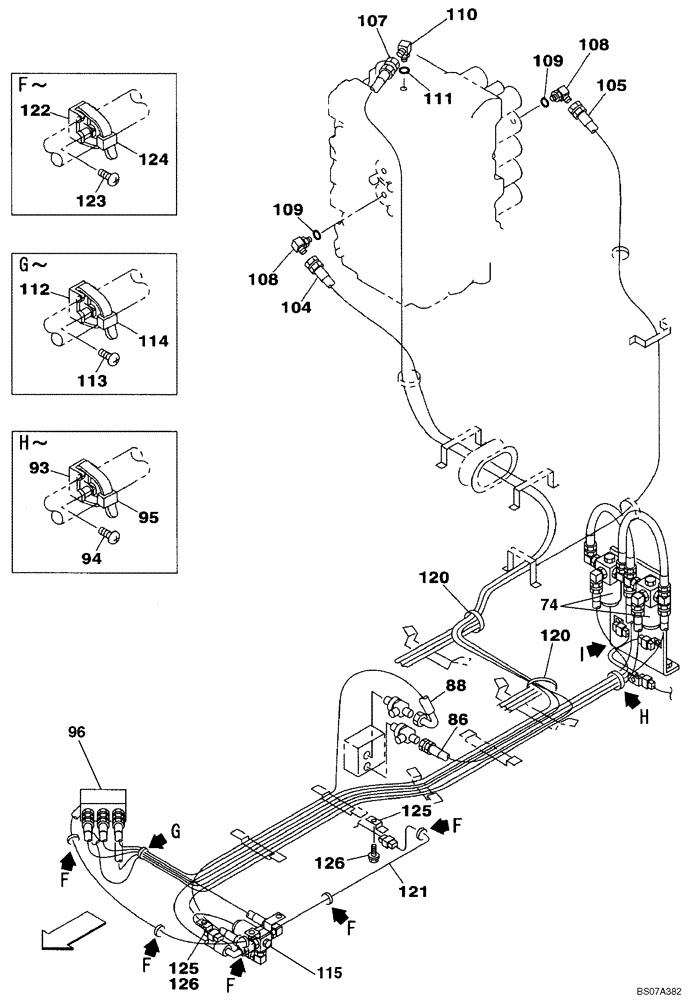

Запчасти Case CX460 (08-53) - HYDRAULICS, AUXILIARY - MULTI-PURPOSE + 3 WAY VALVE, TRIGGER ACTIVATED (08) - HYDRAULICS

74

162538A1

VALVE

Solenoid; See Figure 08-54, 08-82

2шт.

86

151888A1

HOSE,63.00 mm ID x 1350.00 mm

1шт.

88

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

93

150860A1

COLLAR

1шт.

94

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

95

150496A1

MOUNTING CLIP

1шт.

96

KHJ17100

VALVE PRESSURE RELIE

See Figure 08-54; Replaces KHJ1655

1шт.

104

161293A1

HOSE

3600 mm (141-3/4 in)

1шт.

105

157839A1

HOSE,6.3 mm ID x 3900.00 mm

3900 mm (153-1/2 in)

1шт.

107

157839A1

HOSE,6.3 mm ID x 3900.00 mm

3900 mm (153-1/2 in)

1шт.

108

156554A1

ELBOW

Incl. 109

2шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

110

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 111

1шт.

111

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

112

150860A1

COLLAR

1шт.

113

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

114

150496A1

MOUNTING CLIP

1шт.

115

162538A1

VALVE

Solenoid; See Figure 08-54, 08-82

1шт.

120

150071A1

MOUNTING CLIP

1шт.

121

KHR3351

HARNESS

1шт.

122

150860A1

COLLAR

5шт.

123

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

124

150496A1

MOUNTING CLIP

5шт.

125

165405A1

CLIP

2шт.

126

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
