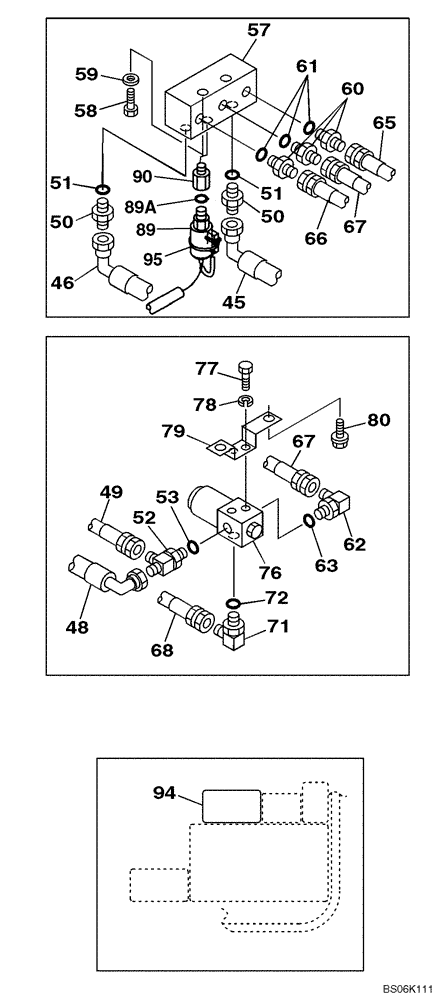

Запчасти Case CX460 (08-50) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

45

KRJ4748

PLASTIC-RUBBER TUBE

1шт.

46

KAJ3243

HYDRAULIC HOSE

1шт.

48

161494A1

HOSE ASSY.

1шт.

49

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

50

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 51

2шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

159497A1

TEE

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

KHJ17100

VALVE PRESSURE RELIE

Shuttle; Replaces KHJ1655

1шт.

58

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

59

153081A1

WASHER

2шт.

60

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 61

3шт.

61

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

62

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 63

2шт.

63

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

65

161293A1

HOSE

1шт.

66

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

67

161272A1

HOSE

1шт.

68

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

71

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

162538A1

VALVE

See Figure 8-82

1шт.

77

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

78

892-11006

LOCK WASHER,M6

2шт.

79

KRJ5751

BRACKET

1шт.

80

166346A1

BOLT,Sems, M10

2шт.

82

KHR3351

HARNESS

1шт.

89

KHR10800

PRESSURE SWITCH

Incl. 89A

1шт.

89a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

KHJ11460

ADAPTER

1шт.

94

KHP1755

DECAL

1шт.

95

150067A1

MOUNTING CLIP

1шт.
