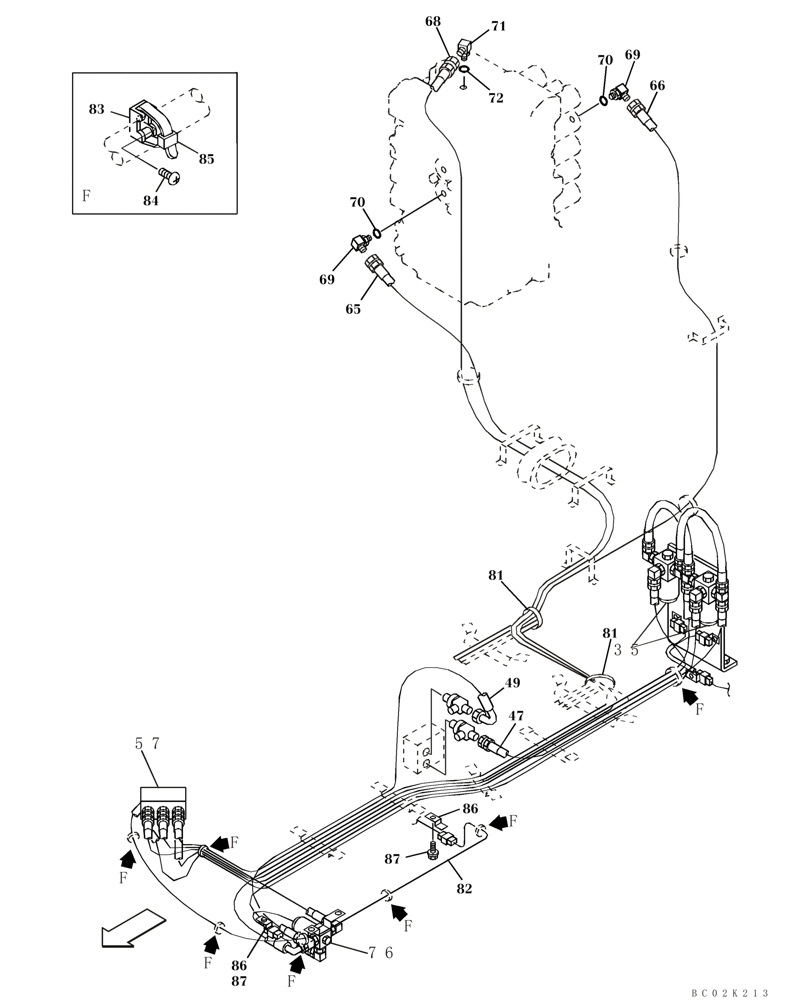

Запчасти Case CX460 (08-49) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, TRIGGER ACTIVATED (08) - HYDRAULICS

35

162538A1

VALVE

Solenoid; See Figure 08-82

2шт.

47

151888A1

HOSE,63.00 mm ID x 1350.00 mm

1шт.

49

159235A1

HYDRAULIC HOSE

850 mm (KRJ3572)

1шт.

57

KHJ17100

VALVE PRESSURE RELIE

; Replaces KHJ1655

1шт.

65

161293A1

HOSE

1шт.

66

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

68

157839A1

HOSE,6.3 mm ID x 3900.00 mm

1шт.

69

156554A1

ELBOW

Incl. 70

2шт.

70

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

71

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

76

162538A1

VALVE

Solenoid; See Figure 08-82

1шт.

81

150071A1

MOUNTING CLIP

1шт.

82

KHR3351

HARNESS

1шт.

83

150860A1

COLLAR

7шт.

84

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

7шт.

85

150496A1

MOUNTING CLIP

7шт.

86

165405A1

CLIP

2шт.

87

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.
