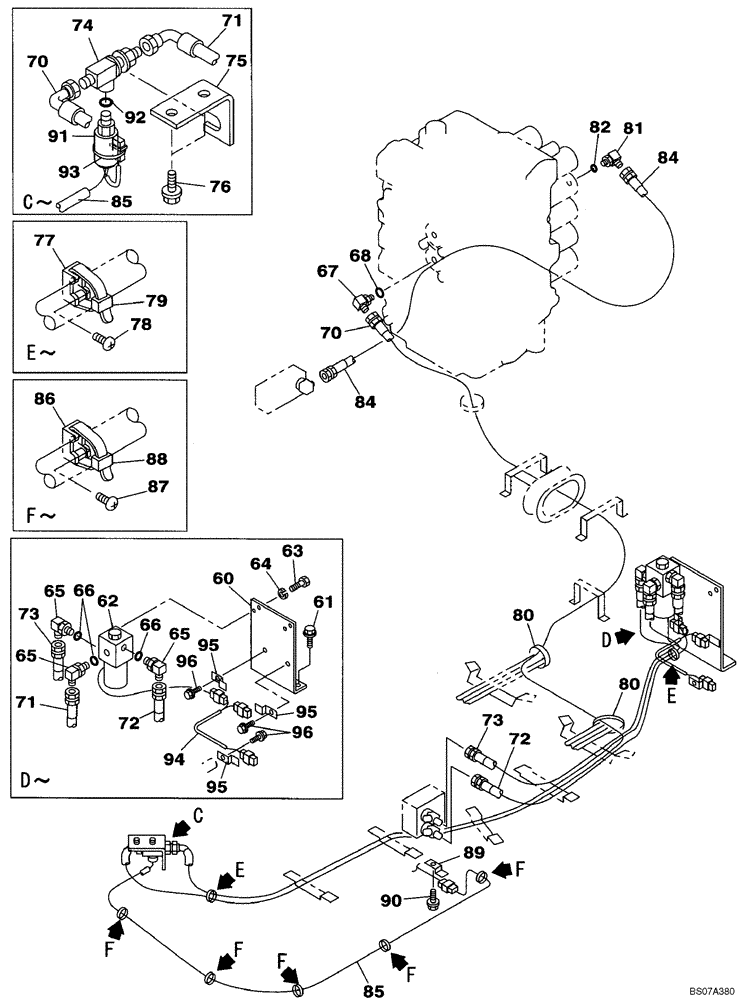

Запчасти Case CX460 (08-47) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT (08) - HYDRAULICS

60

KSJ2835

BRACKET

1шт.

61

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

62

162538A1

VALVE

Solenoid; See Figure 08-82

1шт.

63

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

64

183-106VR

SPRING WASHER

2шт.

65

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 66

3шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

156554A1

ELBOW

Incl. 68

1шт.

68

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

70

KTJ1674

HOSE

1шт.

71

161648A1

HOSE ASSY.

2300 mm (90-9/16 in)

1шт.

72

153398A1

HOSE ASSY.

1400 mm (55-1/8 in)

1шт.

73

KHJ2543

PLASTIC-RUBBER TUBE

1500 mm (59-1/16 in)

1шт.

74

KHJ11470

ADAPTER

1шт.

75

KHJ2127

BRACKET

1шт.

76

166345A1

BOLT

2шт.

77

150860A1

COLLAR

2шт.

78

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

79

150496A1

MOUNTING CLIP

2шт.

80

150071A1

MOUNTING CLIP

2шт.

81

156554A1

ELBOW

Incl. 82

1шт.

82

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

157852A1

HOSE,6.30 mm ID x 1650.00 mm

1650 mm

1шт.

85

KHR3350

HARNESS

1шт.

86

150860A1

COLLAR

5шт.

87

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

5шт.

88

150496A1

MOUNTING CLIP

5шт.

89

165405A1

CLIP

1шт.

90

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

91

KHR10800

PRESSURE SWITCH

Incl. 92

1шт.

92

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

93

150067A1

MOUNTING CLIP

1шт.

94

KHR3870

WIRE HARNESS

1шт.

95

158962A1

CLIP

3шт.

96

167518A1

BOLT

3шт.
