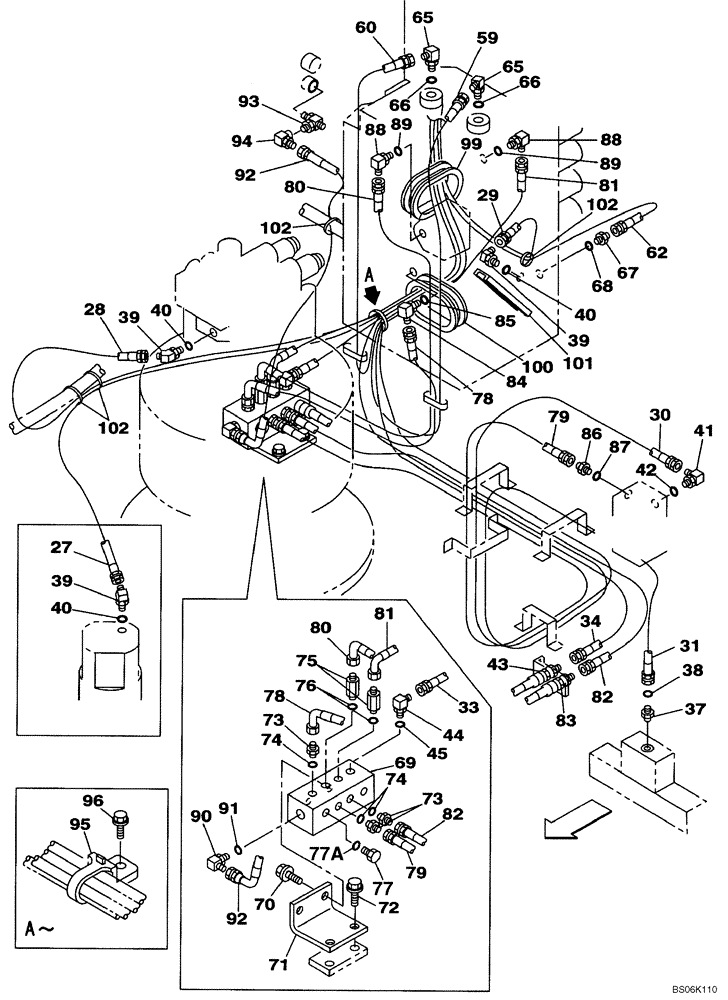

Запчасти Case CX460 (08-45) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

27

KBJ2640

HOSE

1шт.

28

KBJ2640

HOSE

1шт.

29

KAJ3398

HYDRAULIC HOSE

1шт.

30

162558A1

HOSE

1шт.

31

KHJ2281

HOSE

1шт.

33

161174A1

HOSE ASSY.

1шт.

34

162486A1

HOSE ASSY.

1шт.

37

KHJ1291

ORIFICE

Incl. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

39

150933A1

ELBOW

Incl. 40

3шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

162826A1

ADAPTER

1шт.

44

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 45

1шт.

45

154475A1

O-RING

1шт.

59

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

60

KHJ14400

HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm

1шт.

62

152778A1

HOSE ASSY.

1шт.

65

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 66

2шт.

66

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

67

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 68

1шт.

68

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

69

KTJ2111

MANIFOLD

1шт.

70

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

71

KTJ2121

BRACKET

1шт.

72

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

73

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 74

3шт.

74

154475A1

O-RING

1шт.

75

162554A1

FITTING

Incl. 76

2шт.

76

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

159002A1

PLUG

Incl. 77A

1шт.

77a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

78

KAJ2467

HYDRAULIC HOSE

1шт.

79

159080A1

HOSE ASSY.

1шт.

80

164236A1

HOSE ASSY.

1шт.

81

162648A1

HOSE

1шт.

82

152761A1

HOSE ASSY.

1шт.

83

162826A1

ADAPTER

1шт.

84

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 85

1шт.

85

154475A1

O-RING

1шт.

86

152747A1

ADAPTER

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 89

2шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Incl. 91

1шт.

91

154487A1

O-RING

1шт.

92

KNJ2360

HYDRAULIC HOSE,12.70 mm ID x 1020.00 mm

1шт.

93

KHJ1529

FITTING

1шт.

94

FAJ0074

ELBOW

1шт.

95

KHR2581

CLAMP

1шт.

96

KHJ1215

BOLT,Spcl

1шт.

99

158504A1

GROMMET

1шт.

100

163145A1

GROMMET

1шт.

101

166453A1

GROMMET

1шт.

102

150071A1

MOUNTING CLIP

1шт.
