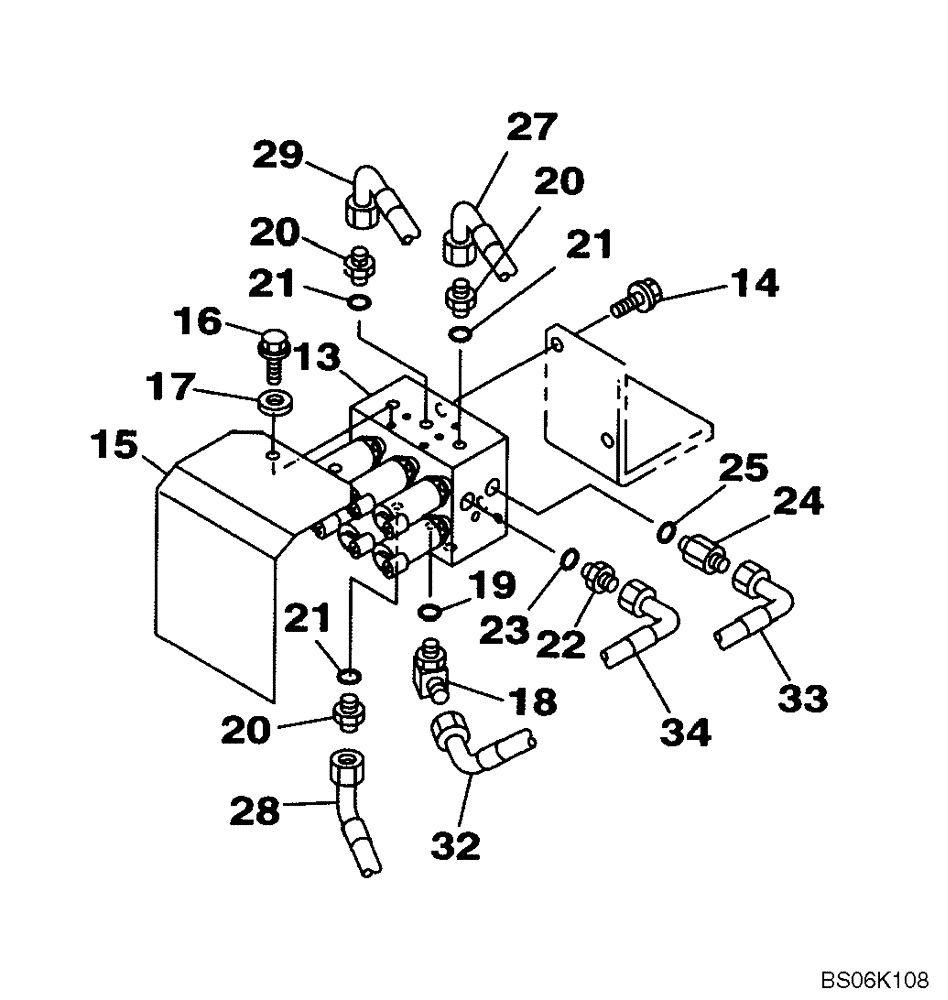

Запчасти Case CX460 (08-43) - VALVE, SOLENOID - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

13

KHJ15460

SOLENOID VALVE

See Figure 08-88

1шт.

14

166351A1

BOLT,Sems, M10 x 20mm

2шт.

15

KHJ1581

COVER

1шт.

16

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

2шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

18

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 19

1шт.

19

154475A1

O-RING

1шт.

20

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 21

5шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 23

1шт.

23

154475A1

O-RING

1шт.

24

159226A1

ADAPTER

Incl. 25

1шт.

25

154475A1

O-RING

1шт.

27

KBJ2640

HOSE

3300 mm (130 in)

1шт.

28

KBJ2640

HOSE

3300 mm (130 in)

1шт.

29

KAJ3398

HYDRAULIC HOSE

2000 mm (78-3/4 in)

1шт.

32

KMJ2204

HOSE

1шт.

33

161174A1

HOSE ASSY.

1шт.

34

162486A1

HOSE ASSY.

3400 mm (133-7/8 in)

1шт.
