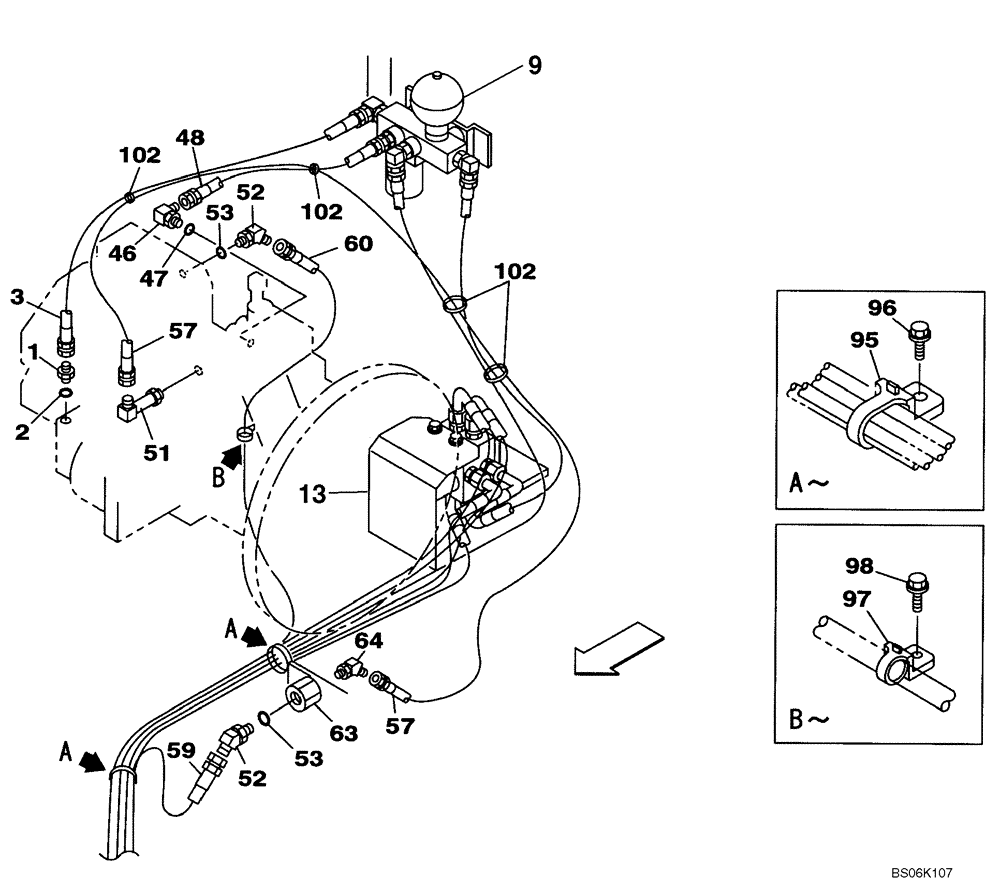

Запчасти Case CX460 (08-42) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

1

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 2

1шт.

2

154487A1

O-RING

1шт.

3

KAJ3233

HYDRAULIC HOSE,12.70 mm ID x 1050.00 mm

1шт.

9

150894A1

ACCUMULATOR

See Figure 08-44

1шт.

13

KHJ15460

SOLENOID VALVE

See Figure 08-43, 08-88

1шт.

46

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 47

1шт.

47

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

167861A1

HYDRAULIC HOSE,6.30 mm ID x 500.00 mm

1шт.

51

KHJ1178

ELBOW

1шт.

52

150933A1

ELBOW

Incl. 53

2шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

57

KHJ14420

HYDRAULIC HOSE,6.35 mm ID x 1500.00 mm

1шт.

59

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

60

KHJ14400

HYDRAULIC HOSE,6.35 mm ID x 2900.00 mm

1шт.

63

167662A1

FITTING

1шт.

64

KHJ1222

ELBOW

1шт.

95

KHR2581

CLAMP

2шт.

96

KHJ1215

BOLT,Spcl

2шт.

97

KHR2584

CLAMP

1шт.

98

KHJ1215

BOLT,Spcl

1шт.

102

150071A1

MOUNTING CLIP

1шт.
