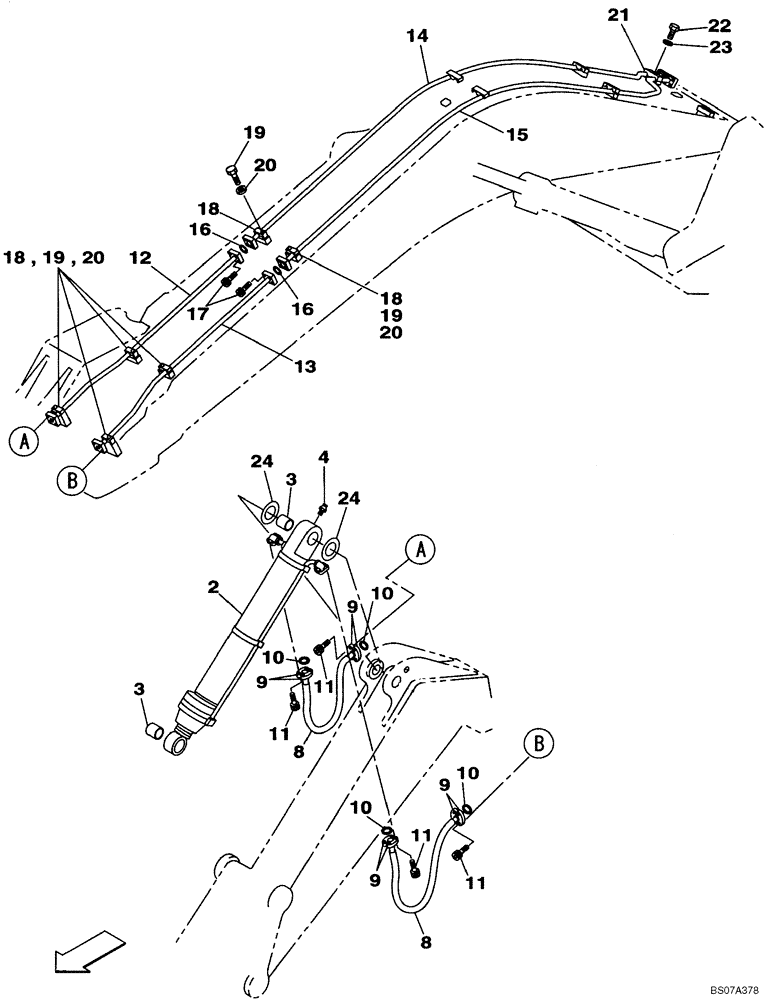

Запчасти Case CX460 (08-14) - HYDRAULICS - BUCKET (08) - HYDRAULICS

2

KTV10720

BUCKET CYLINDER

Bucket; Incl. 3; Also Includes Parts on Figure 08-98

1шт.

2

KTV10720R

REMAN-HYD CYLINDER

Reman For New P/N KTV10720

1шт.

2

KTV10720C

CORE-HYD CYLINDER

Return Number

1шт.

3

KTV1175

SELF LUB RING

2шт.

4

M01X0813

NIPPLE, LUBE

NIPPLE

1шт.

8

KTV1339

HYDRAULIC HOSE,25.40 mm ID x 1900.00 mm

2шт.

9

153459A1

FLANGE

8шт.

10

155211A1

O-RING

4шт.

11

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

16шт.

12

KTV1190

HYD TUBE,26 mm ID x 34 mm OD

1шт.

13

KTV1194

HYD TUBE,6 mm ID x 8 mm OD

1шт.

14

KTV1192

HYD TUBE,26 mm ID x 34 mm OD

1шт.

15

KTV1193

HYD TUBE,26 mm ID x 34 mm OD

1шт.

16

154548A1

O-RING

2шт.

17

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

18

150777A1

COLLAR

6шт.

19

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

20

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

6шт.

21

162595A1

CLAMP

1шт.

22

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

23

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

1шт.

24

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

1шт.
