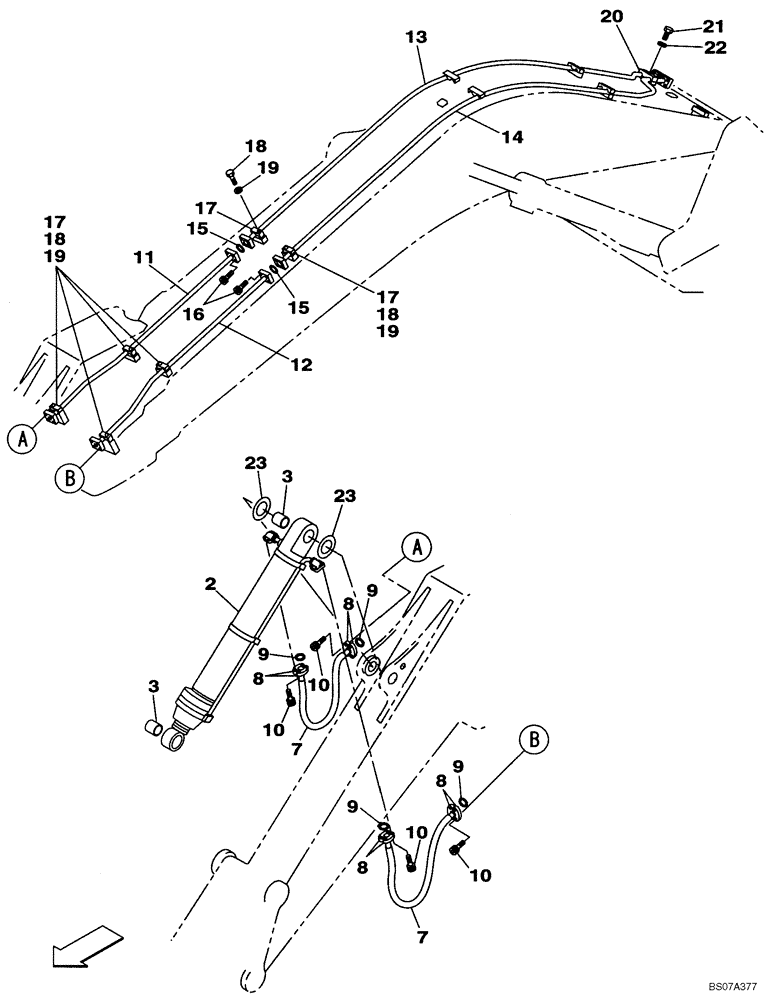

Запчасти Case CX460 (08-13) - HYDRAULICS - BUCKET (08) - HYDRAULICS

2

KTV10720

BUCKET CYLINDER

Bucket; Incl. 3; Also Includes Parts on Figure 08-98

1шт.

2

KTV10720R

REMAN-HYD CYLINDER

Reman For New P/N KTV10720

1шт.

2

KTV10720C

CORE-HYD CYLINDER

Return Number

1шт.

3

KTV1175

SELF LUB RING

2шт.

7

KTV15250

HYDRAULIC HOSE,25.40 mm ID x 1900.00 mm

Replaces 167532A1

2шт.

8

153459A1

FLANGE

8шт.

9

155211A1

O-RING

4шт.

10

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

16шт.

11

KTV1190

HYD TUBE,26 mm ID x 34 mm OD

1шт.

12

KTV1194

HYD TUBE,6 mm ID x 8 mm OD

1шт.

13

KTV1192

HYD TUBE,26 mm ID x 34 mm OD

1шт.

14

KTV1193

HYD TUBE,26 mm ID x 34 mm OD

1шт.

15

154548A1

O-RING

2шт.

16

862-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

8шт.

17

150777A1

COLLAR

6шт.

18

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

6шт.

19

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

6шт.

20

162595A1

CLAMP

1шт.

21

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

22

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

1шт.

23

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

1шт.
