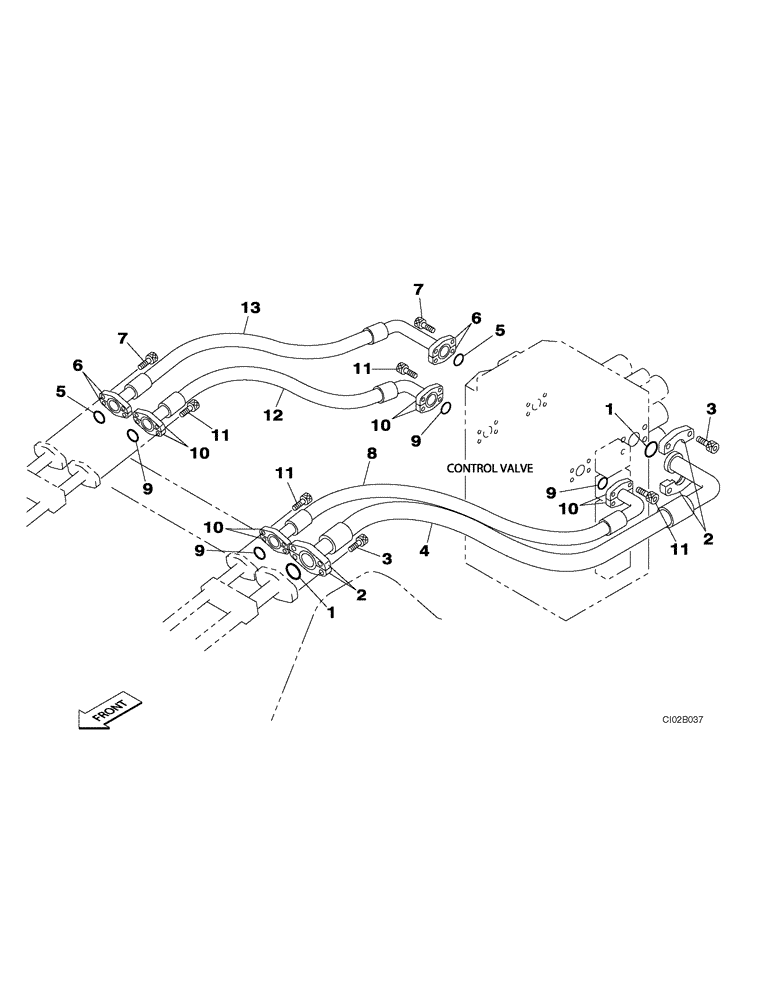

Запчасти Case CX460 (08-10) - HYDRAULICS - ARM AND BUCKET (08) - HYDRAULICS

1

164450A1

O-RING

2шт.

2

150124A1

FLANGE

4шт.

3

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

M14 x 45

8шт.

4

KTJ2079

HYDRAULIC HOSE,31.80 mm ID x 1600.00 mm

1шт.

5

155211A1

O-RING

2шт.

6

153459A1

FLANGE

4шт.

7

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

8шт.

8

KTJ1738

HYDRAULIC HOSE,25.40 mm ID x 1450.00 mm

1шт.

9

155211A1

O-RING

4шт.

10

153459A1

FLANGE

8шт.

11

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

16шт.

12

KTJ1738

HYDRAULIC HOSE,25.40 mm ID x 1450.00 mm

1шт.

13

KTJ2078

HYDRAULIC HOSE,25.40 mm ID x 1600.00 mm

1шт.
