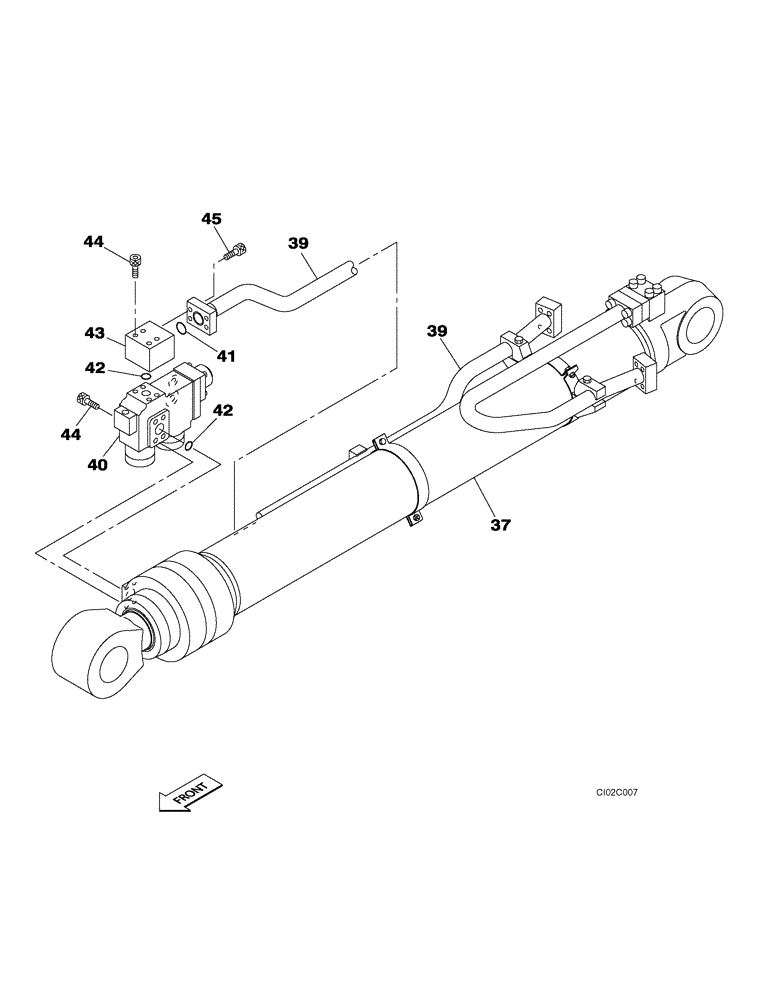

Запчасти Case CX460 (08-16) - HYDRAULICS - ARM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

37

KTV1462

HYDRAULIC CYLINDER

Arm; See Figure 08-96; Replaces KTV1406

1шт.

39

KTV1451

TUBE ASSY.,34.7 mm ID x 42.7 mm OD

1шт.

40

KTV1316

VALVE

See Figure 08-94

1шт.

41

164450A1

O-RING

1шт.

42

168211A1

O-RING

2шт.

43

KSV1606

MANIFOLD

1шт.

44

162030A1

BOLT,Hex Skt Hd

8шт.

45

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.
