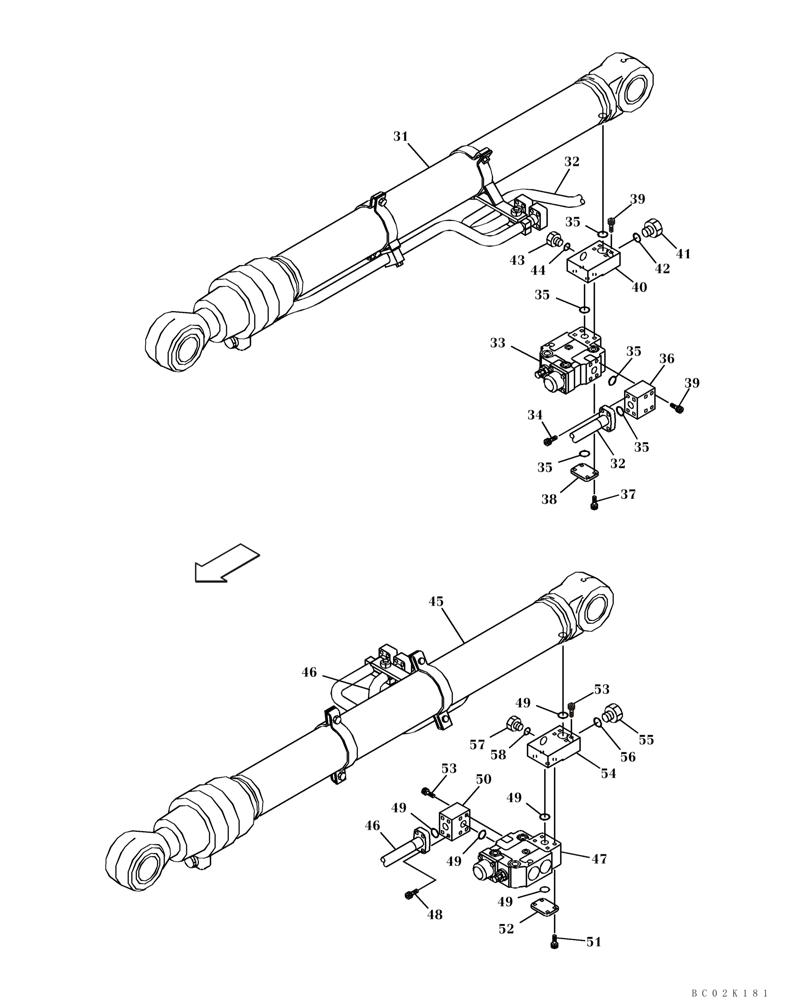

Запчасти Case CX460 (08-12) - HYDRAULICS - BOOM CYLINDER, MODELS WITH LOAD HOLD (08) - HYDRAULICS

31

KTV1471

CYLINDER ASSY.

Boom, Right Hand; See Figure 08-95; Replaces KTV1404

1шт.

32

KTV1317

TUBE ASSY.,26 mm ID x 34 mm OD

1шт.

33

KTV1315

VALVE

See Figure 08-93

1шт.

34

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

35

155211A1

O-RING

5шт.

36

KSV1553

MANIFOLD

1шт.

37

862-12120

HEX SOC SCREW,M12 x 120mm, Cl 12.9

4шт.

38

161955A1

FLANGE

Flat

1шт.

39

862-12065

HEX SOC SCREW,M12 x 65mm, Cl 12.9

8шт.

40

KTV1319

MANIFOLD

1шт.

41

162659A1

PLUG

Incl. 42

1шт.

42

154523A1

O-RING

1шт.

43

153105A1

PLUG

Incl. 44

1шт.

44

154475A1

O-RING

1шт.

45

KTV1472

CYLINDER ASSY.

Boom, Left Hand; See Figure 08-95A; Replaces KTV1405

1шт.

46

KTV1318

HYD TUBE,26 mm ID x 34 mm OD

1шт.

47

KTV1315

VALVE

See Figure 08-93

1шт.

48

862-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

4шт.

49

155211A1

O-RING

5шт.

50

KSV1553

MANIFOLD

1шт.

51

862-12120

HEX SOC SCREW,M12 x 120mm, Cl 12.9

4шт.

52

161955A1

FLANGE

Flat

1шт.

53

862-12065

HEX SOC SCREW,M12 x 65mm, Cl 12.9

8шт.

54

KTV1319

MANIFOLD

1шт.

55

162659A1

PLUG

Incl. 56

1шт.

56

154523A1

O-RING

1шт.

57

153105A1

PLUG

Incl. 58

1шт.

58

154475A1

O-RING

1шт.
