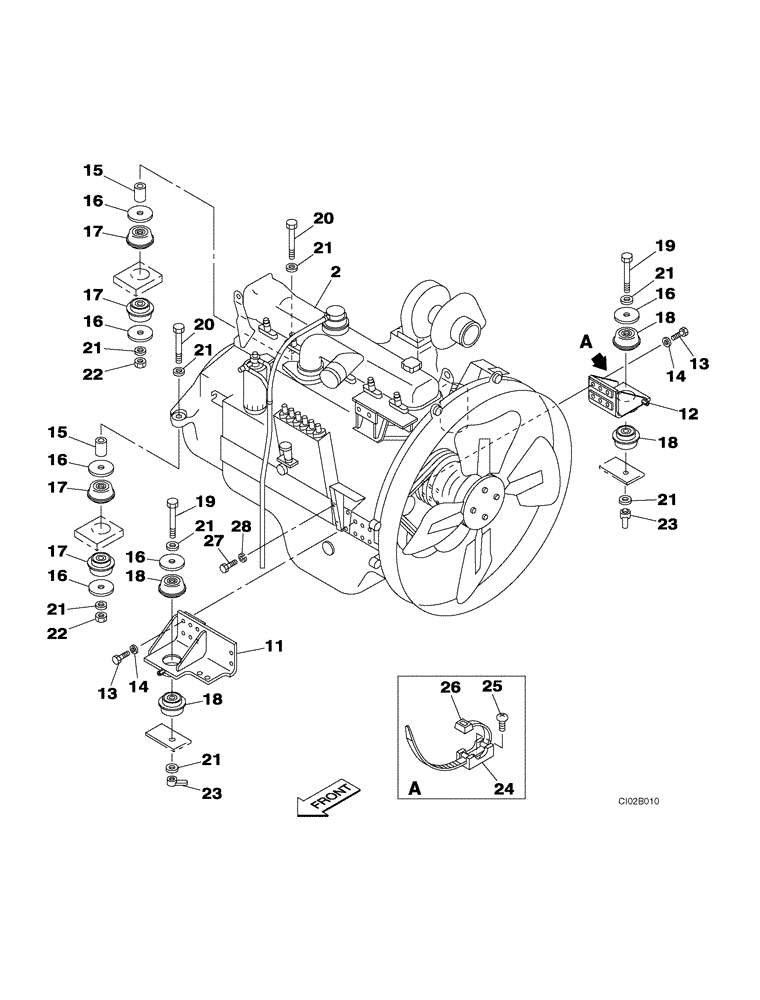

Запчасти Case CX460 (02-01) - ENGINE MOUNTING (02) - ENGINE

2

KTH0660

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSY, See Figure(s) 02-06 - 02-27, 03-05 - 03-13, 04-01 - 04-03

1шт.

2

KTH0660EC

CORE-ENGINE

Environmental Core, For N.A. Only

1шт.

11

KTH0656

ENGINE MOUNT

If Used

1шт.

12

KTH0657

ENGINE MOUNT

If Used

1шт.

13

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

12шт.

14

150409A1

WASHER

10,5 x 21 x 3,2 mm

12шт.

15

KSH0497

SPACER

2шт.

16

150874A1

WASHER

6шт.

17

KTH0566

SILENTBLOC

4шт.

18

KTH0567

SILENTBLOC

If Used

4шт.

19

827-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

2шт.

20

102R020Y260R

BOLT

2шт.

21

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

8шт.

22

162R020VR

NUT

2шт.

23

KSH0923

SPECIAL NUT

2шт.

24

150860A1

COLLAR

1шт.

25

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

26

150067A1

MOUNTING CLIP

1шт.

27

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

If Used

4шт.

28

183-112VR

SPRING WASHER

If Used

4шт.
