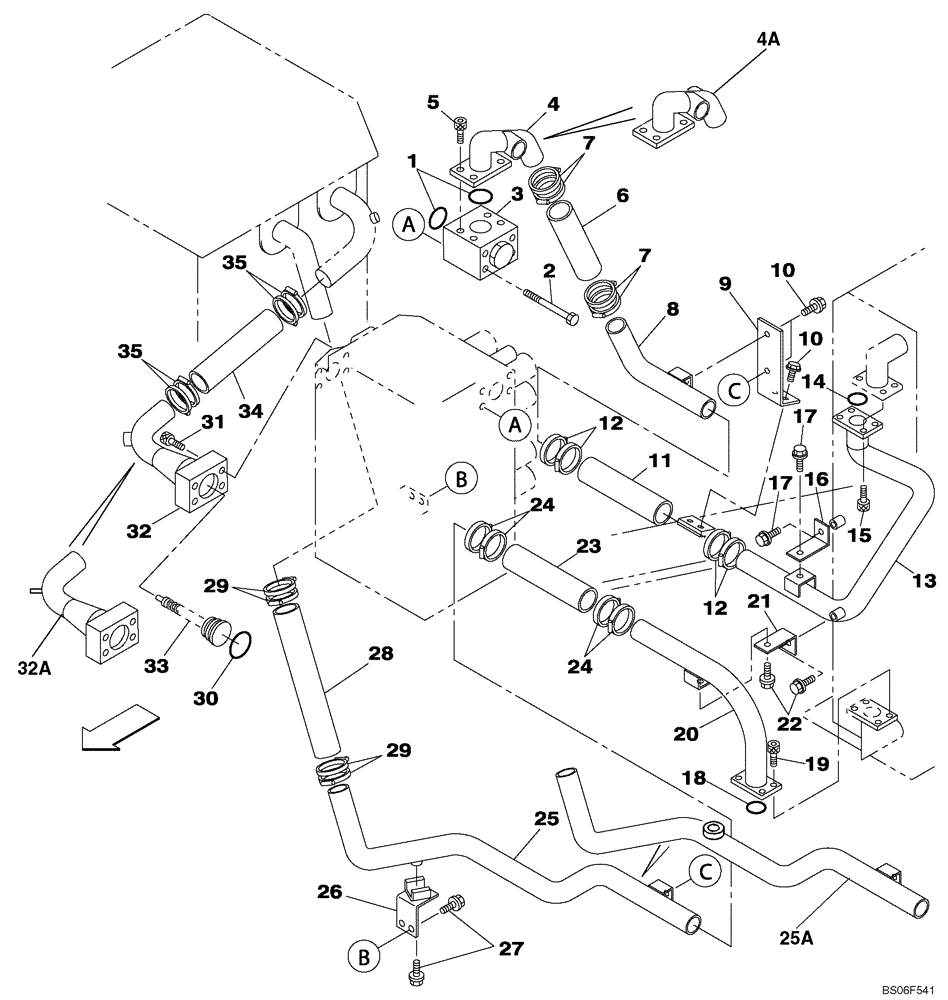

Запчасти Case CX460 (08-05) - HYDRAULICS - RESERVOIR RETURN (08) - HYDRAULICS

1

167059A1

O-RING

2шт.

2

102R012Y140R

BOLT

4шт.

3

KTJ11230

MANIFOLD

Replaces KTJ2185

1шт.

4

KTJ2200

TUBE ASSY.

Used With KTJ2192 Hydraulic Tank, See Figure 08-01, REF 1

1шт.

4a

KTJ2353

HYD TUBE,41.6 mm ID x 48.6 mm OD

Used With KTJ2326 Hydraulic Tank, See Figure 08-01, Ref 25

1шт.

5

108R014Y030R

BOLT

4шт.

6

KHJ1792

HOSE

1шт.

7

150890A1

CLIP,ELECTRICAL

4шт.

8

KTJ2201

TUBE ASSY.,41.6 mm ID x 48.6 mm OD

1шт.

9

KTJ2091

BRACKET

1шт.

10

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

11

KHJ1792

HOSE

1шт.

12

150890A1

CLIP,ELECTRICAL

4шт.

13

KTJ2087

TUBE ASSY.,41.6 mm ID x 48.6 mm OD

1шт.

14

154609A1

O-RING

1шт.

15

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

16

KTJ2089

BRACKET

1шт.

17

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

18

154609A1

O-RING

1шт.

19

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

20

KTJ2088

HYD TUBE,41.6 mm ID x 48.6 mm OD

1шт.

21

KTJ2089

BRACKET

1шт.

22

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

23

KHJ1792

HOSE

1шт.

24

150890A1

CLIP,ELECTRICAL

4шт.

25

KTJ2277

TUBE ASSY.

Used With KTJ2192 Hydraulic Tank, See Figure 08-01, REF 1

1шт.

25a

KTJ2294

HYD TUBE,41.6 mm ID x 48.6 mm OD

Used With KTJ2326 Hydraulic Tank, See Figure 08-01, Ref 25

1шт.

26

KTJ2092

BRACKET

1шт.

27

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

28

KAJ2895

HYDRAULIC HOSE

1шт.

29

150890A1

CLIP,ELECTRICAL

4шт.

30

154681A1

O-RING

1шт.

31

862-12070

HEX SOC SCREW,M12 x 70mm, Cl 12.9

4шт.

32

KTJ2093

TUBE ASSY.

Used With KTJ2192 Hydraulic Tank, See Figure 08-01, REF 1

1шт.

32a

KTJ2328

HYD TUBE,34.7 mm ID x 42.7 mm OD

Used With KTJ2326 Hydraulic Tank, See Figure 08-01, Ref 25

1шт.

33

KHJ18430

CHECK VALVE

Replaces 163791A1

1шт.

34

KHJ1792

HOSE

1шт.

35

150890A1

CLIP,ELECTRICAL

4шт.
