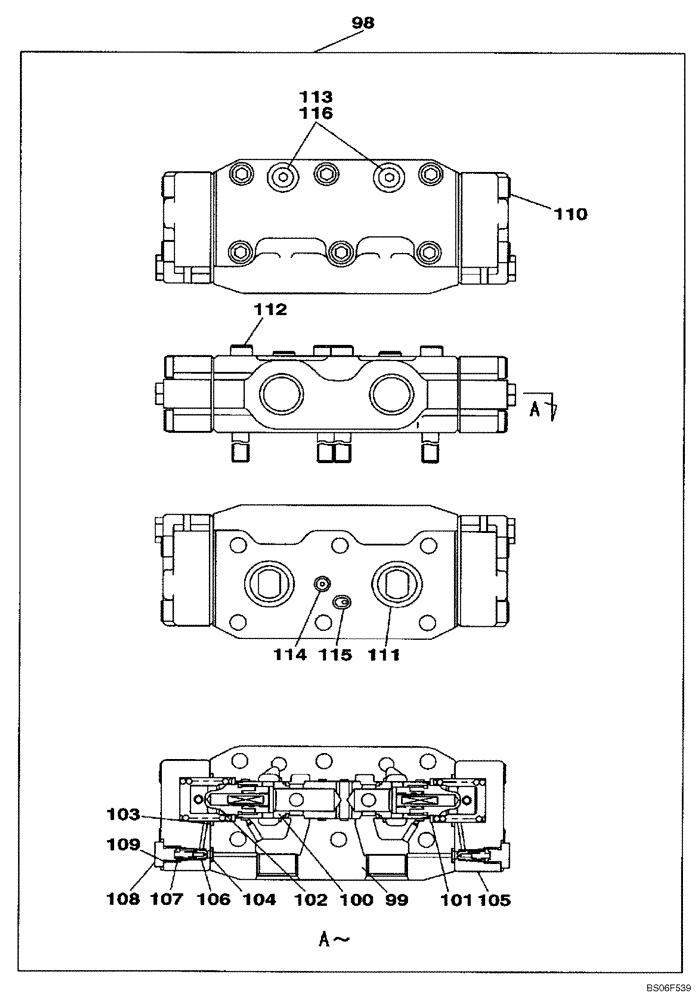

Запчасти Case CX460 (06-04B) - VALVE, BRAKE (06) - POWER TRAIN

98

LJ00996

TRAILER BRAKE VALVE

Incl. 99 - 116

1шт.

99

NSS

NOT SOLD SEPARAT

Body

1шт.

100

NSS

NOT SOLD SEPARAT

Spool, Valve

1шт.

101

LR00868

SPRING SEAT

2шт.

102

LG00434

COMPRESSION SPRING

2шт.

103

154569A1

O-RING

2шт.

104

154459A1

O-RING

2шт.

105

LW00384

CONTROL BLOCK

2шт.

106

LK00389

RESTRICTOR

2шт.

107

LG00435

COMPRESSION SPRING

2шт.

108

LK00390

PLUG

2шт.

109

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

110

863-12045

HEX SOC SCREW,M12 x 45mm, Cl 12.9

8шт.

111

154549A1

O-RING

2шт.

112

862-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

6шт.

113

LK00391

PLUG

2шт.

114

154459A1

O-RING

1шт.

115

154463A1

O-RING

1шт.

116

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

KTA1286

TRAILER BRAKE VALVE

Pilot Valve; Incl. 109, 113, 116, Also Includes Parts on Figures 06-03A, 06-04A

1шт.
