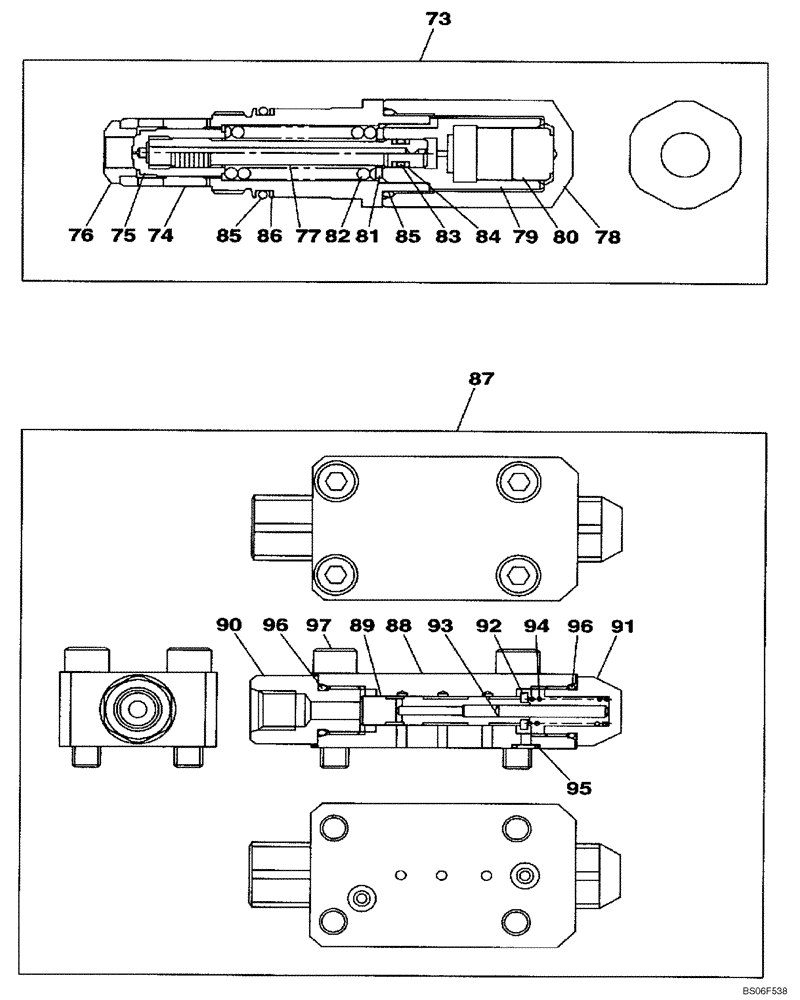

Запчасти Case CX460 (06-04A) - VALVE ASSY, RELIEF - MOTOR, HYDRAULIC (06) - POWER TRAIN

73

LJ00958

VALVE, PRESSURE RELI

EF Incl. 74 - 86

1шт.

74

LK00386

SOCKET

1шт.

75

LJ00959

VALVE

1шт.

76

LR00863

SEAT, VALVE

1шт.

77

LJ00960

PISTON

1шт.

78

LR00864

CAP

1шт.

79

LH00322

SLEEVE

1шт.

80

LJ00961

PISTON

1шт.

81

LH00323

SHIM

1шт.

82

LG00432

COMPRESSION SPRING

1шт.

83

154451A1

O-RING

1шт.

84

153943A1

BACK-UP RING

2шт.

85

154509A1

O-RING

2шт.

86

153987A1

BACK-UP RING

1шт.

87

NSS

NOT SOLD SEPARAT

Valve, Incl. 88 - 97, Order Component Parts Separately

1шт.

88

NSS

NOT SOLD SEPARAT

Body

1шт.

89

NSS

NOT SOLD SEPARAT

Spool

1шт.

90

LK00387

SOCKET

1шт.

91

LK00388

PLUG

1шт.

92

LR00866

SPRING SEAT

1шт.

93

LA00833

SPECIAL PIN

1шт.

94

LG00433

COMPRESSION SPRING

1шт.

95

154447A1

O-RING

2шт.

96

154475A1

O-RING

2шт.

97

LA00834

BOLT,Hex Skt Hd

4шт.

KTA1286

TRAILER BRAKE VALVE

Pilot Valve, Incl. 87, Also Includes Parts On Figures 06-03A, 06-04B

1шт.
