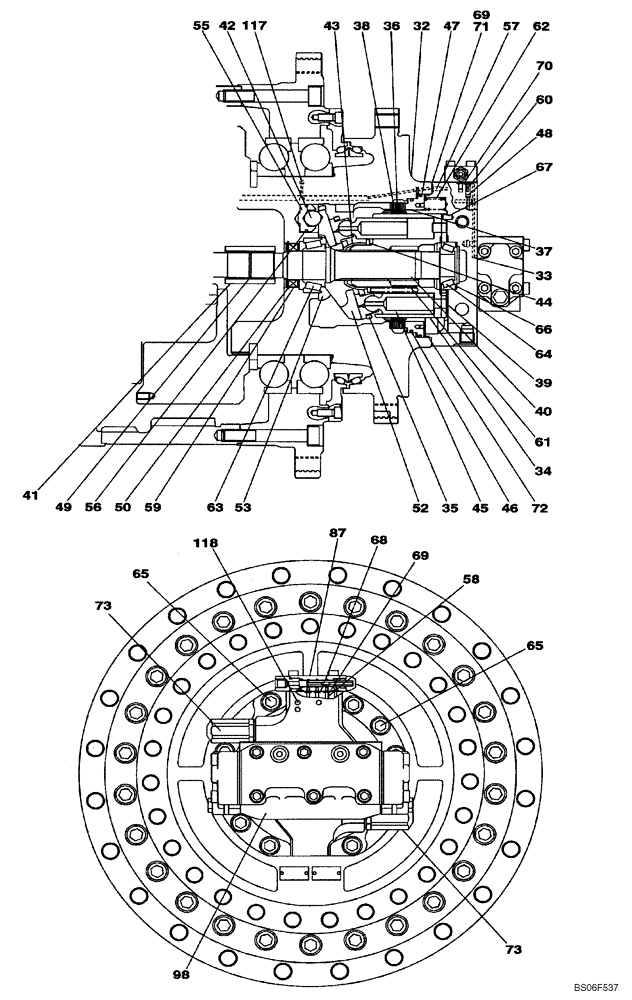

Запчасти Case CX460 (06-03A) - LJ013290 MOTOR ASSY - TRAVEL, INLET AND OUTLET (06) - POWER TRAIN

LJ013290

HYDRAULIC MOTOR

Incl. 32 - 119, Start Serial: DAC0746162

1шт.

32

LW00392

CASE

1шт.

33

LW00387

COVER

1шт.

34

LS00207

CYLINDER BLOCK

1шт.

35

LH00320

RETAINER

1шт.

36

LR00858

PLATE

4шт.

37

LJ00954

PISTON

1шт.

38

LR00859

ADJUSTING PLATE

5шт.

39

LR00877

PLATE

1шт.

40

LB00833

SHAFT

1шт.

41

LB00793

COUPLING FLANGE

1шт.

42

LX00044

BALL

1шт.

43

LB00795

BALL JOINT

1шт.

44

LR00950

SPRING SEAT

1шт.

45

LJ00968

JACK PISTON

9шт.

46

LE012900

SEALING RING

SEALRING

1шт.

47

LE012910

SEALING RING

SEALRING

1шт.

48

LJ00956

VALVE, CHECK

3шт.

49

800-2140

SNAP RING,M40, Int

1шт.

50

800-2168

SNAP RING,M68, Int

1шт.

LR01061

PLATE

Incl. 52, 53

1шт.

52

NSS

NOT SOLD SEPARAT

Plate

1шт.

53

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

LJ01047

PISTON

Incl. 55, 56

1шт.

55

NSS

NOT SOLD SEPARAT

Piston

1шт.

56

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

57

TK00140

RESTRICTOR

Replaces LK00384

1шт.

58

LK005000

RESTRICTOR

Replaces LK00385

1шт.

59

LE00997

OIL SEAL

1шт.

60

LG00429

COMPRESSION SPRING

3шт.

61

LG00430

COMPRESSION SPRING

9шт.

62

LG00431

COMPRESSION SPRING

14шт.

63

LB00834

TAPERED BEARING

1шт.

64

LB00797

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

1шт.

65

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

10шт.

66

LH00389

SHIM KIT

Set; Incl. 66.1 - 66.6

1шт.

66.1

LH00428

SHIM,0.4mm Thk

Not Illustrated

1шт.

66.2

LH00429

SHIM,0.5mm Thk

Not Illustrated

1шт.

66.3

LH00430

SHIM,0.6mm Thk

Not Illustrated

1шт.

66.4

LH00431

SHIM,0.7mm Thk

Not Illustrated

1шт.

66.5

LH00432

SHIM,0.8mm Thk

Not Illustrated

1шт.

66.6

LH00433

SHIM,0.9mm Thk

Not Illustrated

1шт.

67

837-8012

DOWEL,M8 x 12

1шт.

68

154447A1

O-RING

3шт.

69

154455A1

O-RING

2шт.

70

154459A1

O-RING

3шт.

71

LE00998

O-RING

1шт.

72

LE00999

O-RING

1шт.

73

LJ00958

VALVE, PRESSURE RELI

EF See Figure 06-04

2шт.

87

NSS

NOT SOLD SEPARAT

Valve, See Figure 06-04A

1шт.

98

LJ00996

TRAILER BRAKE VALVE

See Figure 06-04B

1шт.

116

LK005010

PLUG

Not Shown

1шт.

117

LK00392

PLUG

1шт.

118

LK00393

PLUG

4шт.

119

LK005040

REDUCER

Not Shown

1шт.
