(06-03) - LJ01274 MOTOR ASSY - TRAVEL, INLET AND OUTLET

Запчасти Case CX460 (06-03) - LJ01274 MOTOR ASSY - TRAVEL, INLET AND OUTLET (06) - POWER TRAIN

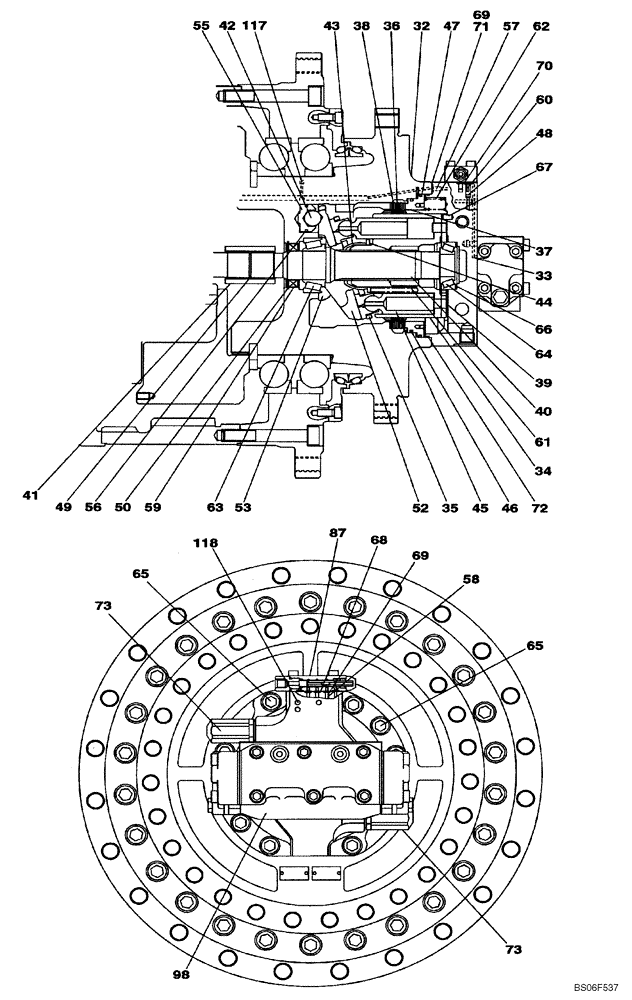

Схема запчастей Case CX460 - (06-03) - LJ01274 MOTOR ASSY - TRAVEL, INLET AND OUTLET (06) - POWER TRAIN
38
39
34
47
64
68
71
37
35
55
32
41
66
69
45
53
52
70
33
44
60
72
58
50
87
67
49
73
61
98
43
118
65
36
56
40
48
63
117
46
59
42
62
69
73
65
57
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

LJ01274

HYDRAULIC MOTOR

Incl. 32 - 118, Serial Range: DAC0746117-DAC0746161

1шт.

32

LW00392

CASE

1шт.

33

LW00387

COVER

1шт.

34

LS00207

CYLINDER BLOCK

1шт.

35

LH00320

RETAINER

1шт.

36

LR00858

PLATE

4шт.

37

LJ00954

PISTON

1шт.

38

LR00859

ADJUSTING PLATE

5шт.

39

LR00877

PLATE

1шт.

40

LB00833

SHAFT

1шт.

41

LB00793

COUPLING FLANGE

1шт.

42

LX00044

BALL

1шт.

43

LB00795

BALL JOINT

1шт.

44

LR00950

SPRING SEAT

1шт.

45

LJ00968

JACK PISTON

9шт.

46

LE00994

SEALING RING

SEALRING

1шт.

47

LE00995

SEALING RING

SEALRING

1шт.

48

LJ00956

VALVE, CHECK

3шт.

49

800-2140

SNAP RING,M40, Int

1шт.

50

800-2168

SNAP RING,M68, Int

1шт.

LR01061

PLATE

Incl. 52, 53

1шт.

52

NSS

NOT SOLD SEPARAT

Plate

1шт.

53

NSS

NOT SOLD SEPARAT

Bearing, Roller

2шт.

LJ01047

PISTON

Incl. 55, 56

1шт.

55

NSS

NOT SOLD SEPARAT

Piston

1шт.

56

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

57

TK00140

RESTRICTOR

Replaces LK00384

1шт.

58

LK005000

RESTRICTOR

Replaces LK00385

1шт.

59

LE00997

OIL SEAL

1шт.

60

LG00429

COMPRESSION SPRING

3шт.

61

LG00430

COMPRESSION SPRING

9шт.

62

LG00431

COMPRESSION SPRING

14шт.

63

LB00834

TAPERED BEARING

1шт.

64

LB00797

TAPERED BEARING,35mm ID x 72mm OD x 24.25mm W

1шт.

65

863-18050

HEX SOC SCREW,M18 x 50mm, Cl 12.9

10шт.

66

LH00389

SHIM KIT

Set; Incl. 66.1 - 66.6

1шт.

66.1

LH00428

SHIM,0.4mm Thk

Not Illustrated

1шт.

66.2

LH00429

SHIM,0.5mm Thk

Not Illustrated

1шт.

66.3

LH00430

SHIM,0.6mm Thk

Not Illustrated

1шт.

66.4

LH00431

SHIM,0.7mm Thk

Not Illustrated

1шт.

66.5

LH00432

SHIM,0.8mm Thk

Not Illustrated

1шт.

66.6

LH00433

SHIM,0.9mm Thk

Not Illustrated

1шт.

67

837-8012

DOWEL,M8 x 12

1шт.

68

154447A1

O-RING

3шт.

69

154455A1

O-RING

2шт.

70

154459A1

O-RING

3шт.

71

LE00998

O-RING

1шт.

72

LE00999

O-RING

1шт.

73

LJ00958

VALVE, PRESSURE RELI

EF See Figure 06-04

2шт.

87

NSS

NOT SOLD SEPARAT

Valve, See Figure 06-04A

1шт.

98

LJ00996

TRAILER BRAKE VALVE

See Figure 06-04B

1шт.

117

LK00392

PLUG

2шт.

118

LK00393

PLUG

4шт.

KTA1286

TRAILER BRAKE VALVE

Incl. 58, 87; Also Includes on Figures 06-04A, 06-04B

1шт.
