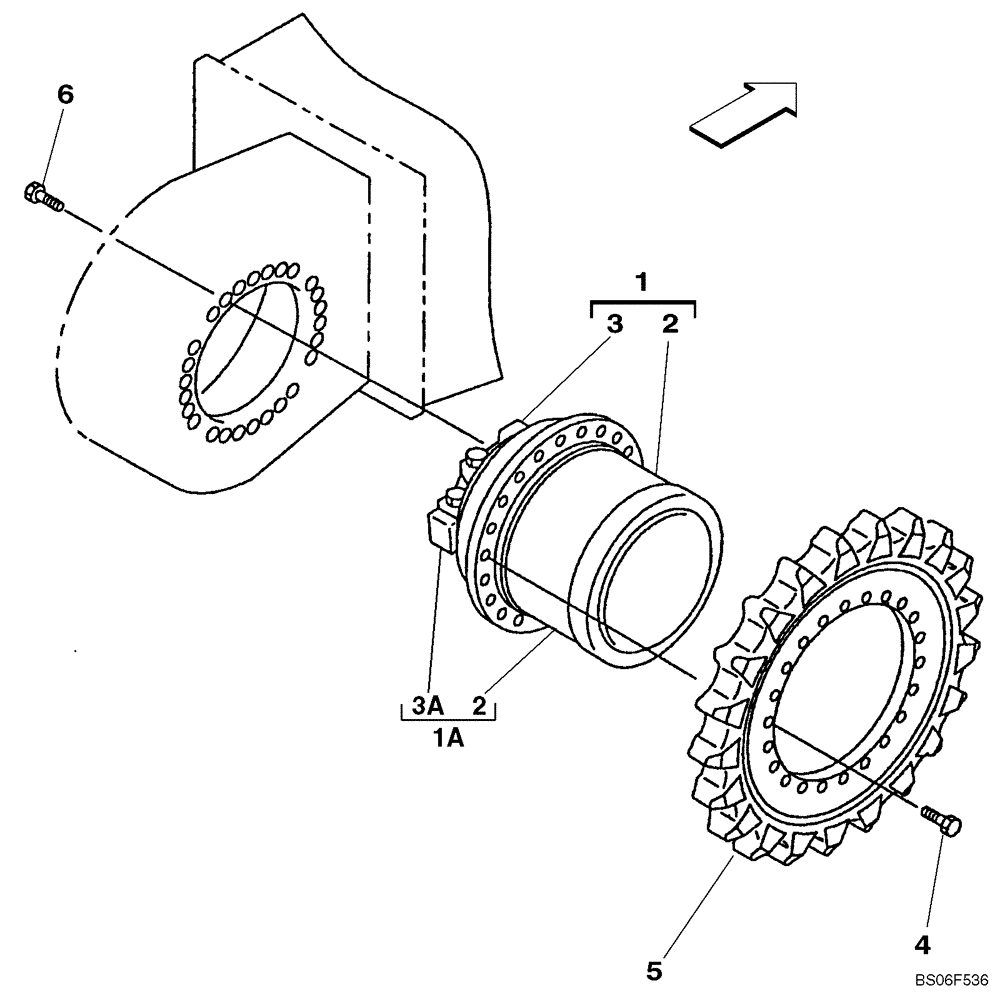

Запчасти Case CX460 (06-01) - TRACK DRIVE ASSY (06) - POWER TRAIN

1

KTA1070

HYDROSTATIC MOTOR

Incl. 2, 3; No Longer Available; For Service Order KTA1287

2шт.

KTA1287

MOTO-REDUCTION GEAR

Incl. 1A, 7

2шт.

1a

KTA1280

HYDROSTATIC MOTOR

Incl. 2, 3A

2шт.

1b

KTA10030

MOTO-REDUCTION GEAR

Incl. 2, 3B

2шт.

2

LN00102

GEAR REDUCTION UNIT

See Figure 06-02

1шт.

3

LJ00993

HYDRAULIC MOTOR

See Figure 06-03; No Longer Available, For Service Order KTA1289

1шт.

KTA1289

KIT

Incl. 3A, 7

1шт.

3a

LJ01274

HYDRAULIC MOTOR

See Figure 06-03A

1шт.

3b

LJ013290

HYDRAULIC MOTOR

See Figure 06-03B

1шт.

4

105R024Y070R

BOLT

48шт.

5

KTA1069

SPROCKET

2шт.

6

166477A1

BOLT,Sems, M24 x 90mm

54шт.

7

KTA1286

TRAILER BRAKE VALVE

Pilot Valve, Not Illustrated

1шт.
